AmazFit WatchFace editor 2 for Windows

[SashaCX75]

Graphics editor for working with dials Amazfit
The editor supports watch faces from GTR 2(e), GTS 2 (GTS 2e / Zepp E Square), T-Rex Pro, Zepp E Circle.

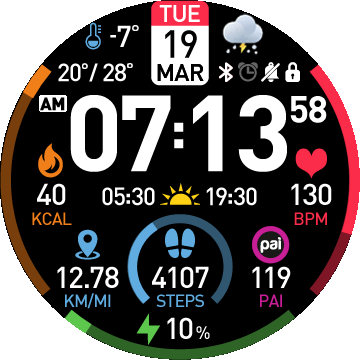

Screenshot

Screenshot

Note: It is advisable to unpack the program to the root of the disk.
Not all dials can be unpacked.

The drawing order of elements cannot be changed. The only exception is if you move the second hand from the center, it will be drawn under the hour and minute hands.

If the .bin file is not created, then you need to look for errors in the .log file. Most often this happens when images have the wrong format.

Version 7.3

List of changes

Fixed known display bugs.

v 7.2

Fixed date display errors in editable zones.
Added support for the Hungarian language.

v 7.1

For distance added support for separate images for miles and kilometers.

v 7.0

Added support for independent coordinates for a set of pictures (segments).

v 6.0

Added support for Zepp E Circle
Added the ability to convert watch faces between different models (GTR 2 (e), Zepp E Circle, T-Rex Pro)

v 5.1

Added the ability to create and update preview images of editable zones.

v 5.0

Added support for editable zones.

v 4.1

Added the ability to display the time in the system font.
Added the ability to display the date in the system font.
Added the ability to change the order of layers.
Added the ability to overlay the clock image on the saved png and gif files (enabled in the settings).

v 4.0

Added support for the system font (inscription at an angle and in a circle).
Added support for the Sunrise parameter (not working correctly for all cities).
Added support for ActivityGoal parameter.
Added the ability to display the goal of steps.
Added support for the Icon parameter.
Added the ability to display circular and linear progress at the same time.

v 3.1

Fixed errors when displaying the distance.
Fixed errors when displaying temperature.
Added French.
Added Italian language.

v 3.0

Added support for T-Rex Pro.
Added support for new elements (StandUp, fat burning, UV index, humidity, wind, pressure).
Found bugs fixed.

v 2.1

Fixed bugs in display AOD.
Fixed bug when using pictures for circular progress.

v 2.0

Added support for AOD.
Added Chinese translation.

v 1

It can work with elements: time, date, statuses, weather, battery, steps, calories, heart rate, PAI, path.
Added English translation.
v 1.2 Added Spanish language

Old versions

v 1.2
v 2.1
v 3.1
v 4.1
v 5.1
v 6.1

Pictures created when unpacking and unpacking bin files are created by the parser and may differ from the images created in the editor. I have nothing to do with these files and am not responsible for their content.

When you turn on the "Follow ..." radio button, the right alignment and center alignment in the editor is displayed incorrectly.
The preview in the editor may differ from the image on the watch. I advise you to check the dial on a real device.

Editable zones do not work on the T-Rex Pro.

The editor does not work with GTS 2 mini (GTS U) watch faces and I do not know how to make such watch faces.

Until the Zepp app has an official watch face with animations or shortcuts, these features cannot be added to the editor.
Shortcuts work on dials converted from GTR (GTS) to GTR 2 (GTS 2). But with this method of creating dials, not all functions work correctly.

GTR (GTS, T-Rex) to GTR2 (GTS 2, T-Rex Pro) converter
GTR (GTS, T-Rex) to GTR2 (GTS 2, T-Rex Pro) Converter & Editor

Because I bought a GTR 3, the program will no longer be updated.

Donate to the author - PayPal: [email protected].

[hemendex]

Please, has the issue with year editing in T-Rex pro face editor been resolved? Still can't add year

Spoiler

[SashaCX75]

Judging by the screenshot you are using not editor but a converter to watch faces. The description of the converter says that not all elements work in this mode.

So if you need the year in the watch face, use the editor and reassemble the watch face.

[cycy1218cycy]

thank you!

[hemendex]

Judging by the screenshot you are using not editor but a converter to watch faces. The description of the converter says that not all elements work in this mode.

So if you need the year in the watch face, use the editor and reassemble the watch face.

Thanks, I understand that the best solution is to make the watch face without converting - from scratch. Too bad the touch zones don't work, they only worked on T-Rex. never mind

[bjk8kds]

Thank you!

[42west]

Hello Sasha, I've had a look at the 7.3 app, and it looks impressive. Thank you for your hard work in creating this.

I was wondering if there is a newer version of the app that supports the Amazfit Balance (or any of the new models from 2023 etc)

[asoo]

Hello Sasha, I've had a look at the 7.3 app, and it looks impressive. Thank you for your hard work in creating this.

I was wondering if there is a newer version of the app that supports the Amazfit Balance (or any of the new models from 2023 etc)

Watch face editor for Amazfit watch on ZeppOS
viewtopic.php?t=2743

[hemendex]

Sasha, help me
Please is it possible to assign KM or MILES units (2 png files) under the numerical value? The program allows only to the right of the number. I have to put it as in the attached picture.

Spoiler

[SashaCX75]

@hemendex
This is not officially supported. But I can suggest a way to try to do it.

Make the image of digits wider (about as wide as 3 digits). The digit itself should be on the right side of the image.
Make the image of units of measurement higher by about 2 times. The units of measurement should be placed in the lower left corner. Set the negative space to be about the size of 2 digits.

[ZiMiZ]

How can i edit this WF? https://amazfitwatchfaces.com/gts/view/3856 i dont find the right software

[asoo]

How can i edit this WF? https://amazfitwatchfaces.com/gts/view/3856 i dont find the right software

link you post is GTS
if you want to edit or modify you must use "AmazFit WatchFace editor for Windows by SashaCX75"
viewtopic.php?p=3789#p3789


"AmazFit WatchFace editor 2 for Windows" not for GTS
