AmazFit WatchFace editor 2 for Windows

[SashaCX75]

Graphics editor for working with dials Amazfit
The editor supports watch faces from GTR 2(e), GTS 2 (GTS 2e / Zepp E Square), T-Rex Pro, Zepp E Circle.
Screenshot

Screenshot

Note: It is advisable to unpack the program to the root of the disk.
Not all dials can be unpacked.

The drawing order of elements cannot be changed. The only exception is if you move the second hand from the center, it will be drawn under the hour and minute hands.

If the .bin file is not created, then you need to look for errors in the .log file. Most often this happens when images have the wrong format.

Version 7.3

List of changes

Fixed known display bugs.

v 7.2

Fixed date display errors in editable zones.
Added support for the Hungarian language.

v 7.1

For distance added support for separate images for miles and kilometers.

v 7.0

Added support for independent coordinates for a set of pictures (segments).

v 6.0

Added support for Zepp E Circle
Added the ability to convert watch faces between different models (GTR 2 (e), Zepp E Circle, T-Rex Pro)

v 5.1

Added the ability to create and update preview images of editable zones.

v 5.0

Added support for editable zones.

v 4.1

Added the ability to display the time in the system font.
Added the ability to display the date in the system font.
Added the ability to change the order of layers.
Added the ability to overlay the clock image on the saved png and gif files (enabled in the settings).

v 4.0

Added support for the system font (inscription at an angle and in a circle).
Added support for the Sunrise parameter (not working correctly for all cities).
Added support for ActivityGoal parameter.
Added the ability to display the goal of steps.
Added support for the Icon parameter.
Added the ability to display circular and linear progress at the same time.

v 3.1

Fixed errors when displaying the distance.
Fixed errors when displaying temperature.
Added French.
Added Italian language.

v 3.0

Added support for T-Rex Pro.
Added support for new elements (StandUp, fat burning, UV index, humidity, wind, pressure).
Found bugs fixed.

v 2.1

Fixed bugs in display AOD.
Fixed bug when using pictures for circular progress.

v 2.0

Added support for AOD.
Added Chinese translation.

v 1

It can work with elements: time, date, statuses, weather, battery, steps, calories, heart rate, PAI, path.
Added English translation.
v 1.2 Added Spanish language

Old versions

v 1.2
v 2.1
v 3.1
v 4.1
v 5.1
v 6.1

Pictures created when unpacking and unpacking bin files are created by the parser and may differ from the images created in the editor. I have nothing to do with these files and am not responsible for their content.

When you turn on the "Follow ..." radio button, the right alignment and center alignment in the editor is displayed incorrectly.
The preview in the editor may differ from the image on the watch. I advise you to check the dial on a real device.

Editable zones do not work on the T-Rex Pro.

The editor does not work with GTS 2 mini (GTS U) watch faces and I do not know how to make such watch faces.

Until the Zepp app has an official watch face with animations or shortcuts, these features cannot be added to the editor.
Shortcuts work on dials converted from GTR (GTS) to GTR 2 (GTS 2). But with this method of creating dials, not all functions work correctly.

GTR (GTS, T-Rex) to GTR2 (GTS 2, T-Rex Pro) converter
GTR (GTS, T-Rex) to GTR2 (GTS 2, T-Rex Pro) Converter & Editor

Because I bought a GTR 3, the program will no longer be updated.

Donate to the author - PayPal: [email protected].

[vlado153]

Could you reupload the latest AmazFit WatchFace editor 2 please?

[demiurg1]

Please, make a donation to the developer of the software (SashaCX75) for creating watch faces. Who cannot do more, should give him even a small, only symbolic amount of money.
He really needs any such payment now.
I already did it via PayPal using his e-mail address: [email protected].

[Franj097]

Hello, have a simple question, how can I create a wf with AOD or keep it when unzipping a downloaded one? I get error when i want to unzip wf i have AOD

[asoo]

Hello, have a simple question, how can I create a wf with AOD or keep it when unzipping a downloaded one? I get error when i want to unzip wf i have AOD

I suggest you attach the WF you mentioned.
To provide information to people who want to help you as information in the check it.

[demiurg1]

Send or indicate where to download the ZIP file of this watch face from AOD, then it will check where the error is.

It looks ok. Now I don't have my smartwatch, but at home I will check what it looks like after uploading the ZIP file to the watch.

[Franj097]

Hello, have a simple question, how can I create a wf with AOD or keep it when unzipping a downloaded one? I get error when i want to unzip wf i have AOD

I suggest you attach the WF you mentioned.
To provide information to people who want to help you as information in the check it.

Sorry, I realized that I downloaded the wrong program. However, now that I have the correct program AmazFit_Watchface_Editor_2.exe version 7.3 (this one has AOD), I wanted to know if any older version can add Shortcuts, because in the program AmazFit_Watchface_Editor_(GTR47ToGTR2) it could add Shortcuts but it didn't have AOD. I have a GTS 2

[asoo]

Sorry, I realized that I downloaded the wrong program. However, now that I have the correct program AmazFit_Watchface_Editor_2.exe version 7.3 (this one has AOD), I wanted to know if any older version can add Shortcuts, because in the program AmazFit_Watchface_Editor_(GTR47ToGTR2) it could add Shortcuts but it didn't have AOD. I have a GTS 2

AmazFit_Watchface_Editor_2 is real editor for GTR2 format and GTR2 not have shortcuts function so editor can not and any shortcuts.

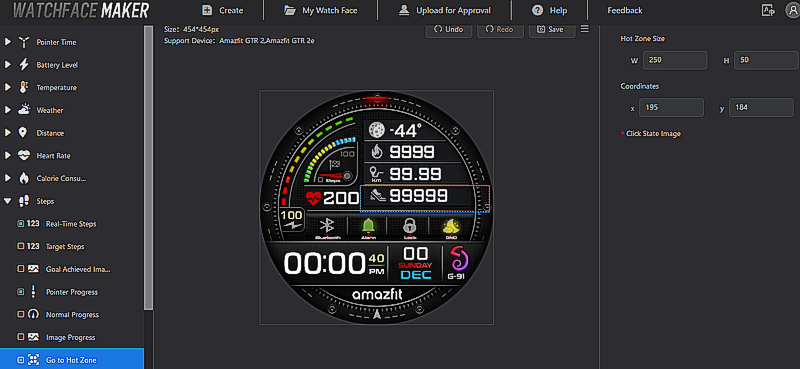

But the official editor ( https://watchface.zepp.com/create )has a shortcut part.

Ex. ( shortcut in step)

Spoiler

Code: Select all

"Activity": [
      {
        "Type": "Steps",
        "PointerProgress": {
          "X": 170,
          "Y": 165,
          "Pointer": {
            "Coordinates": {
              "X": 14,
              "Y": 70
            },
            "ImageIndex": 58
          },
          "StartAngle": 263.0,
          "EndAngle": 371.0
        },
        "Shortcut": {
          "BoxElement": {
            "TopLeftX": 195,
            "TopLeftY": 184,
            "Width": 250,
            "Height": 50
          },
          "ImageIndex": 59
        },
        "Digits": [
          {
            "CombingMode": "Single",
            "Digit": {
              "Image": {
                "X": 252,
                "Y": 188,
                "MultilangImage": [
                  {
                    "LangCode": "All",
                    "ImageSet": {
                      "ImageIndex": 41,
                      "ImagesCount": 10
                    }
                  }
                ]
              },
              "Spacing": 1
            }
          }
        ]
      },
      {

testshortcutonstep.bin

(491.54 KiB) Downloaded 412 times

But the last time I tested It doesn't work either.
and now I'm not using GTR2 so can't test if it works now or not.

---

AmazFit_Watchface_Editor_(GTR47ToGTR2) can add shortcuts because it use script GTR47mm to make GTR2 . it's not a real GTR2 format and have some element not work on the GTR2 although it can be displayed correctly on the editor program but some element not work on real device.

[Franj097]

Hello, I have a question, How can I upload my own watchface to the page amazfitwatchfaces?

[asoo]

Hello, I have a question, How can I upload my own watchface to the page amazfitwatchfaces?

https://amazfitwatchfaces.com/upload

[MikeCarbajal]

Hello, I would like to know how I can extract spheres from the zepp store, I would like to modify some of the spheres that appear in the store, I would appreciate them very much.

[Fearslayer]

Anyone can help? i am trying to make a mario watchface but when i upload it to gtr 2 it wont work, it shows the first clock watch without any custom made i did, the watchface was from gts but i unpacked all files and made it from scratch

[asoo]

Anyone can help? i am trying to make a mario watchface but when i upload it to gtr 2 it wont work, it shows the first clock watch without any custom made i did, the watchface was from gts but i unpacked all files and made it from scratch

The problem is most likely caused by the default file.
The GTR2 default file must start at 0001.png.
But in the file you've attached it starts at 0000.png.

I've attached an example I tried to edit for you to check out.

Ghosthouse.zip

(1.5 MiB) Downloaded 429 times

[Fearslayer]

Anyone can help? i am trying to make a mario watchface but when i upload it to gtr 2 it wont work, it shows the first clock watch without any custom made i did, the watchface was from gts but i unpacked all files and made it from scratch

The problem is most likely caused by the default file.
The GTR2 default file must start at 0001.png.
But in the file you've attached it starts at 0000.png.

I've attached an example I tried to edit for you to check out.
Ghosthouse.zip

Thank you, made my adjusts and its very beauty, is there any way to rotate an object? like i made that ghost change, i could make some images and make him move in diagonal, i tried to put angle: -70 but wont work

[asoo]

Thank you, made my adjusts and its very beauty, is there any way to rotate an object? like i made that ghost change, i could make some images and make him move in diagonal, i tried to put angle: -70 but wont work

Sorry , Now I'm not using GTR2 so I am not sure that can do or not
But if editor can not do it , I think it's can not do too

[Fearless-Week]

I've been trying for two days now with a skin for T-Rex Pro and all I got is a black screen on the watch when I upload it. I dont know what to. I was using this editor and never have any problems. I tried everything, disabling every pointer, numbers, etc and when I up it to my T-Rex I only have a black screen, the watch look dead but its running.

I dont know what to do, maybe the editor compile wrong something I couldnt find.

Actually was this editor and its version is 7.3

[opelnight]

ciao qualcuno mi puo' aiutare non riesco a modificare faces
la volevo con l'ora e minuti completamente bianca
e il giorno sabato in verde

[asoo]

ciao qualcuno mi puo' aiutare non riesco a modificare faces
la volevo con l'ora e minuti completamente bianca
e il giorno sabato in verde

First of all, I recommend that you post in the right area.
- This area is about SashaCX75's editor program.
It is not a place to request corrections watchface.

---

If you want to request i recommend please use this forum.
viewforum.php?f=39
- If possible, please specify the name of the device you are using.
the file you attached It looks like GTS, but in this area is the GTS2 editor.
Ok, which device watchface do you want, please specify clearly in the request.

- Please follow the Forum rules.

Code: Select all

Forum rules
All communication in this branch should only be in English.


[RTMhun]

hi.
I made some WatchFaces (GTR2) with this app (WF editor 2), and sometimes I got same error messages while generate bin file - in log file. And bin has not created.
all png files are made by own. I've drawn its in Xara Designer or DotNetPaint

whitch file sould I check or remake/save ?

"
2022-11-05 17:49:55,102 - root - ERROR - Preview Generate Error...
2022-11-05 17:49:55,103 - root - ERROR - cannot open resource
Traceback (most recent call last):
[...]
OSError: cannot open resource
"

(I've upload two bin file with same errors)
many thanks

[SashaCX75]

RTMhun If bin files are not created, what kind of files did you post here? Files that were created without errors? You put here a project in which an error occurs, or at least a complete log file. Usually such errors occur when there is an image not in 32bit format.

[RTMhun]

oops you're right. the bins created after I deleted some features while I've searched error solutions.
or created, but does not works like in the editor, as I planned

if you try 3rd version of my CiteCat face, the balls around cathead not moves (followed time) and eyes of the cat does not move like in editor (if you decompile it)
https://amazfitwatchfaces.com/gtr/view/28361

but my new creation doesn't work so I haven't uploaded yet - pls see attachement
and 'course I upload first bin about I talked - KiteCat

(because of got answer, I deleted my json files at this post)

[asoo]

Spoiler

oops you're right. the bins created after I deleted some features while I've searched error solutions.
or created, but does not works like in the editor, as I planned

if you try 3rd version of my CiteCat face, the balls around cathead not moves (followed time) and eyes of the cat does not move like in editor (if you decompile it)
https://amazfitwatchfaces.com/gtr/view/28361

but my new creation doesn't work so I haven't uploaded yet - pls see attachement
and 'course I upload first bin about I talked - KiteCat

If I'm not mistaken, GTR2 can't use System fonts and custom fonts at the same time . In this case, your problem might be that you are showing Digital time in seconds with custom font and System font at the same time, which might be the reason for the problem you are having. You only have to choose one or the other.

[RTMhun]

this can a correct way for sollution
I'll Try!!!
THANKS

[RTMhun]

OOOOUUUHH!
it works!
my some projects occures same errors
so sure same solutions wait for me
many and more thanks
you made my day!

[mira.vorlik]

Hello, after uploading to the watch, the fat burning (Numerical values) item does not appear. Could it be fixed please? This is a T-Rex Pro watch. Editor version 7.3. Thank you MV

[RTMhun]

whitch project of me?
Ihave not made watchface for T-Rex only GTR2 ...
