Watch face editor for Amazfit watch on ZeppOS

[SashaCX75]

Alternative watch face editor for Amazfit watch on ZeppOS.

Supported watch models

- Amazfit Active
- Amazfit Active 2
- Amazfit Active 2 (Square)
- Amazfit Active Edge
- Amazfit Active Max
- Amazfit Band 7
- Amazfit Balance
- Amazfit Balance 2
- Amazfit Bip 5
- Amazfit Bip 5 Unity
- Amazfit Bip 6
- Amazfit Cheetah
- Amazfit Cheetah Pro
- Amazfit Cheetah (Square)
- Amazfit Cheetah 2 Pro
- Amazfit Falcon
- Amazfit GTR 3
- Amazfit GTR 3 Pro
- Amazfit GTR 4
- Amazfit GTR mini
- Amazfit GTS 3
- Amazfit GTS 4
- Amazfit GTS 4 mini
- Amazfit T-Rex 2
- Amazfit T-Rex 3
- Amazfit T-Rex 3 Pro
- Amazfit T-Rex Ultra
- Amazfit T-Rex Ultra 2

When unpacking the watch faces, it is advisable to immediately select the correct watch model, otherwise the colors may be distorted.

It is desirable to create a new project in a separate folder. Image names do not have to consist only of numbers, you can add short prefixes (for example, date_01, time_01).
Watch faces created in the editor and on Huami's website should unpack normally. Watch faces from Zepp and those created based on them will not be unpacked.
In a set of images for displaying one parameter (for example, images for displaying the day of the week), all images should preferably be the same size. If the size of the images is different, then the first image in the set should be the largest.

All new features in this and next release will be tested on the GTR4 and may not work on other models.

List of changes

v17.1

Fixed the bugs that were found.
Added support for Cheetah 2 Pro.

v17.0

Added the ability to create a ZAB file for publication in the store (button in settings)
Added wind speed in km/h
Added atmospheric pressure in mm Hg
Added support for T-Rex Ultra 2.

v16.1

The ability to invert time circles has been added.
Active Max support has been added.
Image file name verification has been added.
The behavior of application shortcuts in editable elements has been fixed.

v16.0

Added sleep widget.
Added text widgets.

v15.1

Added support for new watch models.
Added BioCharge widget.
Added buttons to launch new applications.

v15.0

Time circles added.
Added world time (time, city, time zone, time offset).
Added text display around the circle.
Added the ability to create watch faces in developer mode (for experienced users, allows logs to be displayed in watch faces).

v14.0

Added support for widgets: ALARM_CLOCK, TRAINING_LOAD, VO2MAX, AQI, BODY_TEMP, FLOOR, READINESS, HRV.
Added support for Balance 2.
Changed the structure of the Preview.States file.
When creating an animated preview, frames with a switchable background have been added.
Added the ability to display the city name in uppercase letters in the weather forecast.
Added links to lessons.

v13.2

Added support for Bip 6.
Fixed the progress display using the image set for most widgets. It should now be more similar to how it is displayed on the watch.
Reworked the code for displaying heart rate with a circular scale. It now uses the standard widget in place of the sensor.
Fixed PAI progress display. Note that the maximum value for the PAI pointer is 525, not 100. This is a feature of the watch, not the editor.
Added warning if files in watch face are in *.bin format.

v13.1

Added ability to make a shortcut to any application in editable items.
Added support for Active 2.
Fixed display of buttons and shortcuts when creating a GIF file.

v13.0

Added autosave (enabled in settings).
Added ability to switch background image by tap.
Added ability to switch background colour by tap.

v12.1

Added transparency for some widgets. Does not work on all models.
Added support for Amazfit T-Rex 3.

v11.2

Fixing the smooth second hand on the GTR4.

v11.1

Updated the digital time widget.
Updated shortcuts widget.
Added new application launch commands for buttons.

v11.0

Completely redesigned the weather widget.
Added weather widget for several days (forecast).
Added support for Bip 5 Unity.

v10.4

Added ability to display month names in a font.
Added Compass widget (works on ZeppOS 2 or later).
Added ability to create *.zpk file (enabled in settings).

v10.3

Added display of hours:minutes:seconds in a single line font.
Added display of date/month/year in one line font (order depends on the watch setting).
Added display of the day of the week in font.
Added new presets for button functions.

v10.2

Added ability to copy widget properties (context menu on the properties field).

v10.1

Added display of time and date in font.
Added widget for adding scripts to watch face.
Fixed bugs in sunrise/sunset operation on circle and at an angle.
Fixed bugs in digital time alignment.

v10.0

]Added support of fonts for data display (after installing such watch faces it is better to restart the watch).
Added possibility to display altitude (in barometer).
Completely redesigned the moon widget.
The arrow pointer for sun and moon should now not be displayed after sunset.
All images are now copied to the watch face, even if they are in folders.

v9.1

Fixed working with Amazfit Balance.
Added support for Amazfit Active.
Added support for Amazfit Active Edge.
Fixed display of distance on a circle.
Fixed displaying sunrise and sunset at an angle.
Added ability to convert images to ARGB format in settings.
Fixed continuous vibration in notifications.

v9.0

Added ability to create shortcuts for a set of images (IMG_LEVEL).
Added support for buttons and presets to launch inbuilt apps.
Added support for Amazfit Balance (not tested).

v8.2

Added ability to display angled or circumferential data for sunrise/sunset, maximum and minimum temperatures (for weather, separate units of Celsius and Fahrenheit only work on newer models).
Added support for Cheetah / Cheetah Pro.
Added support for Bip 5.
Theoretically it is now possible to add support for new models by editing the file in the model_config folder.

v8.1

Added ability to display data at an angle or in a circle for date and time.
Fixed found errors when unpacking dials.
Fixed found errors when working with UHD monitors.

v8.0

Added support for T-Rex Ultra
Added support for GTR Mini
Added the ability to display data at an angle or in a circle (battery, steps, distance, calories, heart rate, PAI, SpO2, stand)

v7.3

Fixed problems with icons in editable items.
Fixed problems with circular progress in editable items.
Added ability to set data rotation angle for some models (ZeppOS 2).
Improved algorithm for unpacking dials that contain additional features. Increased probability of partial dial recognition.

v7.2

Added the ability to change the type of line ending for linear and circular progress.
Added the ability to create shortcuts without using an image.

v7.1

Added independent element with image and top image.
For editable items on the clock, an additional selection in the form of a list is included.
Changed the function of creating an editable element for fat burning.
Fixed motion animation and rotation animation for GTR4 and GTS4.
Added wind direction.
Updated watch face file format.

v7.0

Added smooth second hand (several types)
Added alert every hour
Added the ability to change the direction of rotation of the hour hands
Added the ability to set the sector in which the hour hands work

v6.4

Improved the stability of the bluetooth connection loss notification function
Updated German and Spanish translation

v6.3

Added the possibility of notifications when the connection is broken and restored
Fixed work progress for fat burning
Fixed work progress for the pulse
Fixed bugs in temperature display
Fixed display of shortcuts in AOD mode

v6.1

Added Falcon support.
Changed the algorithm of shortcuts to eliminate conflicts with editable elements.
The configuration of created watch faces has been updated to version 2.

v6.0

Added support for editable background.
Added support for editable arrows.
Added support for editable elements.
Added German translation.

v5.0

Added support for GTR 4
Added support for GTS 4 Mini
Added support for Amazfit Band 7 (not to be confused with Mi Band 7)

v4.1

Fixed bugs when creating and unpacking GTR 3 Pro watch faces

v4.0

Added animation support.
Added Ukrainian language.
Added a tab with some tips on working with the editor.
Added the ability to display the distance in miles.

v 3.0

Added sunrise / sunset
Added barometer
Added stress
Wind added
Added fat burning
Added moon phases

v 2.0

Added weather.
Added workout (stand).
Added oxygen (SpO2).
Added humidity.
Added UV index.
Added the ability to highlight shortcuts when saving gif files (enabled in the settings).
Updated the display of shortcuts in connection with the firmware update on the watch.
Added Italian language.
Added Spanish language.

v 1.1

Fixed loss of error symbol for pulse.
Fixed errors when unpacking dials.
Fixed bug with incorrect model definition for GTS 3.

Version 17.1
Fixed the bugs that were found.
Added support for Cheetah 2 Pro.

Old versions

v 10.0
v 10.1
v 10.2
v 10.3
v 10.4
v 11.0
v 11.1
v 11.2
v 12.1
v 13.0
v 13.1
v 13.2
v 14.1
v 15.0
v 15.1
v 16.0
v 16.1
v 17.0

PS. The interface was translated using an online translator. If someone wants to improve the translation, then write to the PM.

PS2. Many people ask how to install watch faces. For starters, I advise you to read this topic. Personally, I prefer to use this program to install the created watch faces on the GTR 3 (for the GTS 3)

Сollection of code examples for use in watch faces.

Donate to the author - PayPal: [email protected].
Buy me a coffee

[samuelsan]

Please, add "Value in Font (day)" to the PAI widget. It only displays "Numerical values ​​(day)".
Thank you.

[numagari]

Spoiler

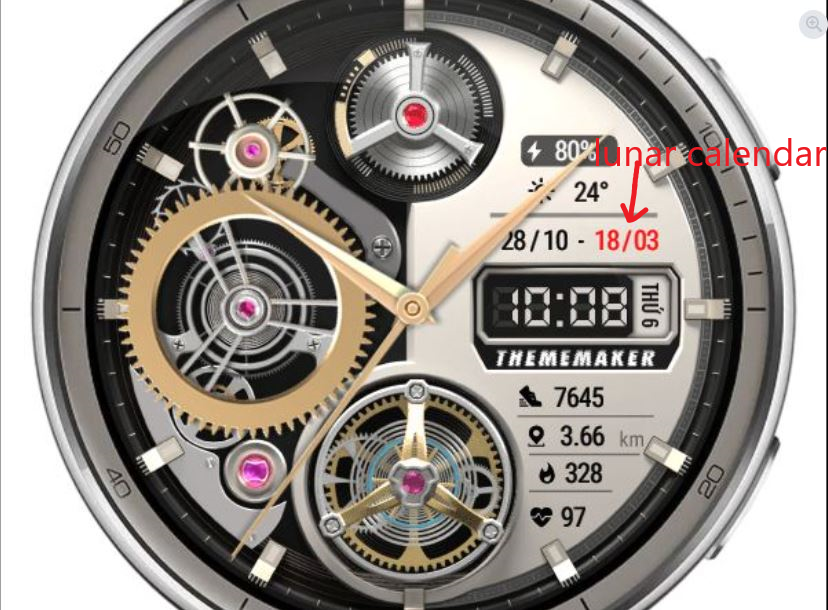

please guide me to add lunar calendar to custom watch face like photo. thanks everyone

[SashaCX75]

Archive

Version 15.0
Mirror

Installer

Version 15.0
Mirror

Time circles added.
Added world time (time, city, time zone, time offset).
Added text display around the circle.
Added the ability to create watch faces in developer mode (for experienced users, allows logs to be displayed in watch faces).

[SashaCX75]

There are two installation options to choose from. The old option with an archive. And the new option with an installer. However, the archive option does not work for some users due to paranoid antivirus restrictions on downloaded applications in the latest versions of Windows.

Please let us know which variant is more convenient for you.

[seythegamer]

@seythegamer
The watch cannot work with gif files, only with png files. There is animation in the watch faces, it is done with a set of png files.

alright got it,

but is it maybe possible to create animation using png files but for weather icons?

so now weather icons go from 1 to i dont remeber, lets say 31
and i would like to create an animation for each of the weather icons

is it possible to achieve or no?

[SashaCX75]

Not in the editor.
But in principle, it can be done. Although I only remember two such attempts.

[rush2112]

Thanks

---

@SashaCX75

Just a quick question regarding the watch's balance: for the next version, could you have the AM and PM displayed in font ?
Thanks

[SashaCX75]

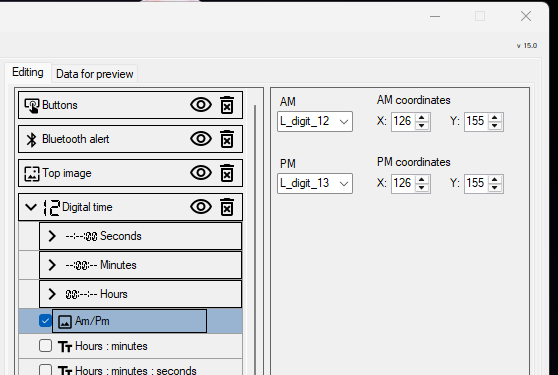

@rush2112

What's wrong with that?

[rush2112]

Okay , Thanks

[rush2112]

@rush2112

What's wrong with that?

The attachment you're displaying features the "Hours" font along with Hours plus AM and PM , However, I'm referring to the style shown in the picture. Would you be able to apply that font to the "AM" and "PM" sections?

Thanks

Spoiler

[SashaCX75]

No. This is a standard widget that only works with images.

[CASIONFAN2021]

Refuses to load on win 11. i have all the previous versions which work perfectly, but this one came up with a red windows security warning, i clicked run anyway but it refuses to load. stuck on ver 13 until a solutuion presents itself.

[SashaCX75]

@CASIONFAN2021 Download the app from the MS Store
https://apps.microsoft.com/store/detail/XP89MR7PJVT9Q9

[CASIONFAN2021]

@CASIONFAN2021 Download the app from the MS Store
https://apps.microsoft.com/store/detail/XP89MR7PJVT9Q9

thank you, impressive

[UlliT.]

Hi,

you write:

Watch faces created in the editor and on Huami's website should unpack normally. Watch faces from Zepp and those created based on them will not be unpacked.

Excuse me - but i do not understand that all...

i made me first and only watchface with the zepp watchface maker.
Is there a easy way to get that in the Watch face editor for Amazfit watch on ZeppOS?
Or have i start from the beginning?

Greetings

Ulli

[asoo]

Hi,

you write:

Watch faces created in the editor and on Huami's website should unpack normally. Watch faces from Zepp and those created based on them will not be unpacked.

Excuse me - but i do not understand that all...

i made me first and only watchface with the zepp watchface maker.
Is there a easy way to get that in the Watch face editor for Amazfit watch on ZeppOS?
Or have i start from the beginning?

Greetings

Ulli

When you export a file from Zepp's watchface make,
you'll receive a .zab file. Uncompress the file with WinRAR.
You'll find a .zpk file, and then uncompress it again.
You'll find a Device.zip file.
You can "Unpack" Device.zip by use editor, and to continue working on your project without having to rebuild it.

unpack device.zip with program editor

[SashaCX75]

i made me first and only watchface with the zepp watchface maker.

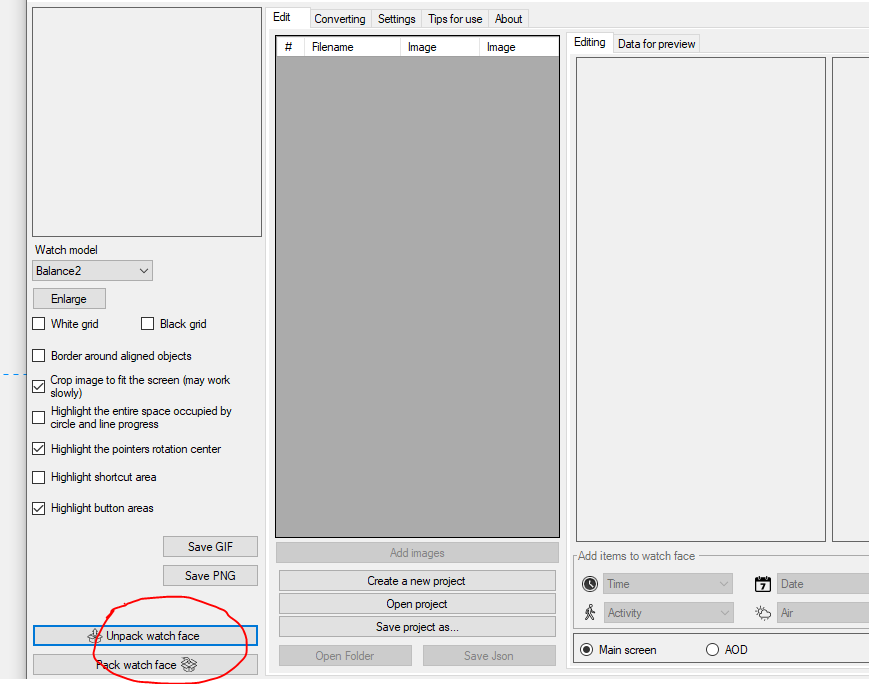

Is there a easy way to get that in the Watch face editor for Amazfit watch on ZeppOS?

In most cases, the above instructions will work. It all depends on what widgets you use. If you used text with tags, it will not be recognized when unpacking.

[Phantan74]

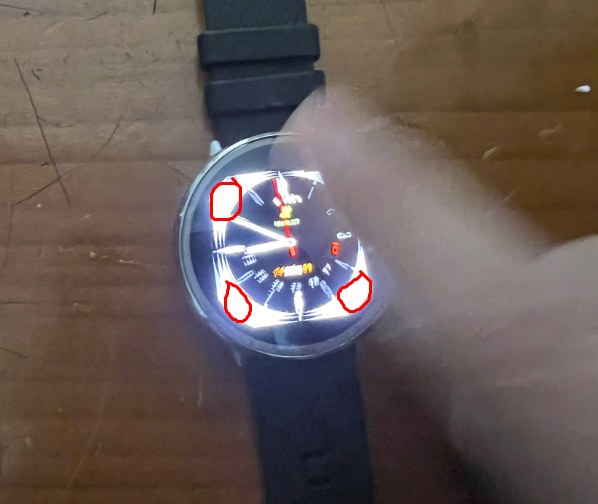

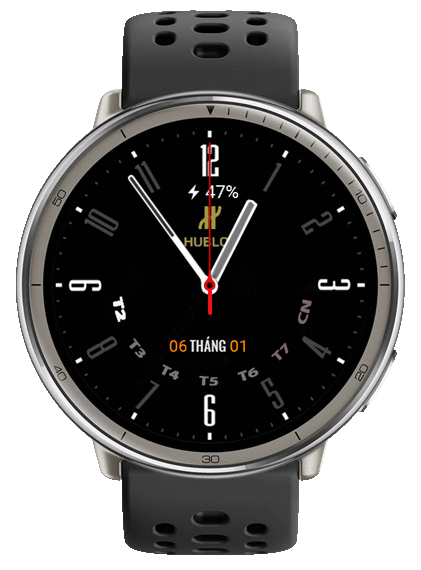

I use Watch face editor for Amazfit watch on ZeppOS on PC to create watch face, but when I clicking on the watch face, it shows white space around (like the picture), it should be black.

Please guide me to fix it.

thank you.

Spoiler

https://www.dropbox.com/scl/fi/bmn8c0mv ... 75aod&dl=0

[asoo]

I use Watch face editor for Amazfit watch on ZeppOS on PC to create watch face, but when I clicking on the watch face, it shows white space around (like the picture), it should be black.

Please guide me to fix it.

thank you.

Spoiler

You should attach the file of the watch face you're using and found issue.
Reporting an issue the way you did is difficult to verify.
The issue could be caused by a number of factors, from generated images to custom scripts, and many more.

[Phantan74]

I use Watch face editor for Amazfit watch on ZeppOS on PC to create watch face, but when I clicking on the watch face, it shows white space around (like the picture), it should be black.

Please guide me to fix it.

thank you.

Spoiler

You should attach the file of the watch face you're using and found issue.
Reporting an issue the way you did is difficult to verify.
The issue could be caused by a number of factors, from generated images to custom scripts, and many more.

Yes, I send you the attached file, please check it for me. Thanks.

https://www.dropbox.com/scl/fi/bmn8c0mv ... 75aod&dl=0

[asoo]

Yes, I send you the attached file, please check it for me. Thanks.

https://www.dropbox.com/scl/fi/bmn8c0mv ... 75aod&dl=0

The white frame issue is likely caused by the white background of your Bg1.
It is unlikely to be caused by editor.
I've already edited the image to make it transparent.

But what I don't understand is that you enabled the Switchable Background, but didn't take any action (I assume you're waiting to proceed).

Watch_face.zip

(56.94 KiB) Downloaded 68 times

[Phantan74]

Yes, I send you the attached file, please check it for me. Thanks.

https://www.dropbox.com/scl/fi/bmn8c0mv ... 75aod&dl=0

The white frame issue is likely caused by the white background of your Bg1.
It is unlikely to be caused by editor.
I've already edited the image to make it transparent.

But what I don't understand is that you enabled the Switchable Background, but didn't take any action (I assume you're waiting to proceed).

Watch_face.zip

Yes, thank you, I understand.

[frankh93]

@SashaCX75 the compass gets buggy when tapping on the shortcut made in the editor, and also the compass info (pointer rotation and degrees text) gets stuck for sometime and the only workaround to get it working again is to turn off/on screen couple times... is this normal? any workaround?

The watchface I'm working on is attatched, ty in advance

[asoo]

@SashaCX75 the compass gets buggy when tapping on the shortcut made in the editor, and also the compass info (pointer rotation and degrees text) gets stuck for sometime and the only workaround to get it working again is to turn off/on screen couple times... is this normal? any workaround?

The watchface I'm working on is attatched, ty in advance

Since you didn't mention which device you're experiencing this issue on, I'm guessing from you att. file you're experiencing it on the Bip6, as I'm also experiencing this issue on the Bip6.
And as far as I know, this issue doesn't occur on any other devices I own.
So, I don't think the issue is with the editor, but rather with the Bip6 itself.

It seems that if you enable the compass widget to display on the watchface, you'll encounter issues using the compass shortcut, as you mentioned. :I don't know the exact cause, so I can only guess that the problem is with the FW.

There are two ways to fix this:
1. Don't use the compass widget on the watchface; so you will can access it via the shortcut normally.

2. If you use the compass widget on the watchface and then use the shortcut (button) hmApp.startApp({url: 'CompassScreen', native: true }); to access the Compass screen, you must stop the compass before enabling CompassScreen as follows:

Add to the compass button

Code: Select all

if (compass) compass.stop();  // add this
hmApp.startApp({url: 'CompassScreen', native: true });

Note : This fix sometimes causes a "screen on duration" issue.
The "screen on duration" may not match your default value. It may increase to 16-30 seconds, but is only happend once time after using the shortcut . Which I don't know why either.

BigElegant_Fix.zip

(200.76 KiB) Downloaded 68 times

However, if you want to calibrate by accessing the compassScreen home screen via the shortcut, from my testing, once you access the compassScreen home screen and calibrate it until it works, when you return to the watchface, you'll notice that sometimes the calibration on the compassScreen home screen doesn't affect the compass on the watchface. The compass on the watchface still doesn't work, or sometimes it freezes, requiring you to switch between screens for the compass on the watchface to work.
I believe this is due to the Bip6 firmware, not the editor.

The best way to calibrate the compass on the watchface is to shake the watch or flick your hands that you wearing the watch. The compass on the watchface will then work.

These are just solutions from my testing and my understanding. So maybe someone else can answer your question better.. I hope this answer is helpful.

[rush2112]

@asoo

Hi,

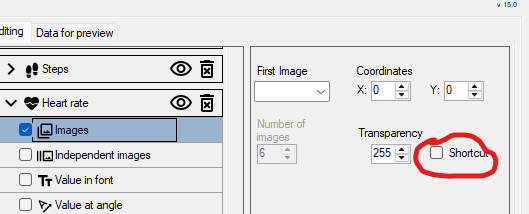

Could you please explain how to create or add a shortcut in the tools editor of Editor V15?

Thanks

Spoiler
