Watch face editor for Amazfit watch on ZeppOS

[SashaCX75]

Alternative watch face editor for Amazfit watch on ZeppOS.

Supported watch models

- Amazfit Active
- Amazfit Active 2
- Amazfit Active 2 (Square)
- Amazfit Active Edge
- Amazfit Active Max
- Amazfit Band 7
- Amazfit Balance
- Amazfit Balance 2
- Amazfit Bip 5
- Amazfit Bip 5 Unity
- Amazfit Bip 6
- Amazfit Cheetah
- Amazfit Cheetah Pro
- Amazfit Cheetah (Square)
- Amazfit Cheetah 2 Pro
- Amazfit Falcon
- Amazfit GTR 3
- Amazfit GTR 3 Pro
- Amazfit GTR 4
- Amazfit GTR mini
- Amazfit GTS 3
- Amazfit GTS 4
- Amazfit GTS 4 mini
- Amazfit T-Rex 2
- Amazfit T-Rex 3
- Amazfit T-Rex 3 Pro
- Amazfit T-Rex Ultra
- Amazfit T-Rex Ultra 2

When unpacking the watch faces, it is advisable to immediately select the correct watch model, otherwise the colors may be distorted.

It is desirable to create a new project in a separate folder. Image names do not have to consist only of numbers, you can add short prefixes (for example, date_01, time_01).
Watch faces created in the editor and on Huami's website should unpack normally. Watch faces from Zepp and those created based on them will not be unpacked.
In a set of images for displaying one parameter (for example, images for displaying the day of the week), all images should preferably be the same size. If the size of the images is different, then the first image in the set should be the largest.

All new features in this and next release will be tested on the GTR4 and may not work on other models.

List of changes

v17.1

Fixed the bugs that were found.
Added support for Cheetah 2 Pro.

v17.0

Added the ability to create a ZAB file for publication in the store (button in settings)
Added wind speed in km/h
Added atmospheric pressure in mm Hg
Added support for T-Rex Ultra 2.

v16.1

The ability to invert time circles has been added.
Active Max support has been added.
Image file name verification has been added.
The behavior of application shortcuts in editable elements has been fixed.

v16.0

Added sleep widget.
Added text widgets.

v15.1

Added support for new watch models.
Added BioCharge widget.
Added buttons to launch new applications.

v15.0

Time circles added.
Added world time (time, city, time zone, time offset).
Added text display around the circle.
Added the ability to create watch faces in developer mode (for experienced users, allows logs to be displayed in watch faces).

v14.0

Added support for widgets: ALARM_CLOCK, TRAINING_LOAD, VO2MAX, AQI, BODY_TEMP, FLOOR, READINESS, HRV.
Added support for Balance 2.
Changed the structure of the Preview.States file.
When creating an animated preview, frames with a switchable background have been added.
Added the ability to display the city name in uppercase letters in the weather forecast.
Added links to lessons.

v13.2

Added support for Bip 6.
Fixed the progress display using the image set for most widgets. It should now be more similar to how it is displayed on the watch.
Reworked the code for displaying heart rate with a circular scale. It now uses the standard widget in place of the sensor.
Fixed PAI progress display. Note that the maximum value for the PAI pointer is 525, not 100. This is a feature of the watch, not the editor.
Added warning if files in watch face are in *.bin format.

v13.1

Added ability to make a shortcut to any application in editable items.
Added support for Active 2.
Fixed display of buttons and shortcuts when creating a GIF file.

v13.0

Added autosave (enabled in settings).
Added ability to switch background image by tap.
Added ability to switch background colour by tap.

v12.1

Added transparency for some widgets. Does not work on all models.
Added support for Amazfit T-Rex 3.

v11.2

Fixing the smooth second hand on the GTR4.

v11.1

Updated the digital time widget.
Updated shortcuts widget.
Added new application launch commands for buttons.

v11.0

Completely redesigned the weather widget.
Added weather widget for several days (forecast).
Added support for Bip 5 Unity.

v10.4

Added ability to display month names in a font.
Added Compass widget (works on ZeppOS 2 or later).
Added ability to create *.zpk file (enabled in settings).

v10.3

Added display of hours:minutes:seconds in a single line font.
Added display of date/month/year in one line font (order depends on the watch setting).
Added display of the day of the week in font.
Added new presets for button functions.

v10.2

Added ability to copy widget properties (context menu on the properties field).

v10.1

Added display of time and date in font.
Added widget for adding scripts to watch face.
Fixed bugs in sunrise/sunset operation on circle and at an angle.
Fixed bugs in digital time alignment.

v10.0

]Added support of fonts for data display (after installing such watch faces it is better to restart the watch).
Added possibility to display altitude (in barometer).
Completely redesigned the moon widget.
The arrow pointer for sun and moon should now not be displayed after sunset.
All images are now copied to the watch face, even if they are in folders.

v9.1

Fixed working with Amazfit Balance.
Added support for Amazfit Active.
Added support for Amazfit Active Edge.
Fixed display of distance on a circle.
Fixed displaying sunrise and sunset at an angle.
Added ability to convert images to ARGB format in settings.
Fixed continuous vibration in notifications.

v9.0

Added ability to create shortcuts for a set of images (IMG_LEVEL).
Added support for buttons and presets to launch inbuilt apps.
Added support for Amazfit Balance (not tested).

v8.2

Added ability to display angled or circumferential data for sunrise/sunset, maximum and minimum temperatures (for weather, separate units of Celsius and Fahrenheit only work on newer models).
Added support for Cheetah / Cheetah Pro.
Added support for Bip 5.
Theoretically it is now possible to add support for new models by editing the file in the model_config folder.

v8.1

Added ability to display data at an angle or in a circle for date and time.
Fixed found errors when unpacking dials.
Fixed found errors when working with UHD monitors.

v8.0

Added support for T-Rex Ultra
Added support for GTR Mini
Added the ability to display data at an angle or in a circle (battery, steps, distance, calories, heart rate, PAI, SpO2, stand)

v7.3

Fixed problems with icons in editable items.
Fixed problems with circular progress in editable items.
Added ability to set data rotation angle for some models (ZeppOS 2).
Improved algorithm for unpacking dials that contain additional features. Increased probability of partial dial recognition.

v7.2

Added the ability to change the type of line ending for linear and circular progress.
Added the ability to create shortcuts without using an image.

v7.1

Added independent element with image and top image.
For editable items on the clock, an additional selection in the form of a list is included.
Changed the function of creating an editable element for fat burning.
Fixed motion animation and rotation animation for GTR4 and GTS4.
Added wind direction.
Updated watch face file format.

v7.0

Added smooth second hand (several types)
Added alert every hour
Added the ability to change the direction of rotation of the hour hands
Added the ability to set the sector in which the hour hands work

v6.4

Improved the stability of the bluetooth connection loss notification function
Updated German and Spanish translation

v6.3

Added the possibility of notifications when the connection is broken and restored
Fixed work progress for fat burning
Fixed work progress for the pulse
Fixed bugs in temperature display
Fixed display of shortcuts in AOD mode

v6.1

Added Falcon support.
Changed the algorithm of shortcuts to eliminate conflicts with editable elements.
The configuration of created watch faces has been updated to version 2.

v6.0

Added support for editable background.
Added support for editable arrows.
Added support for editable elements.
Added German translation.

v5.0

Added support for GTR 4
Added support for GTS 4 Mini
Added support for Amazfit Band 7 (not to be confused with Mi Band 7)

v4.1

Fixed bugs when creating and unpacking GTR 3 Pro watch faces

v4.0

Added animation support.
Added Ukrainian language.
Added a tab with some tips on working with the editor.
Added the ability to display the distance in miles.

v 3.0

Added sunrise / sunset
Added barometer
Added stress
Wind added
Added fat burning
Added moon phases

v 2.0

Added weather.
Added workout (stand).
Added oxygen (SpO2).
Added humidity.
Added UV index.
Added the ability to highlight shortcuts when saving gif files (enabled in the settings).
Updated the display of shortcuts in connection with the firmware update on the watch.
Added Italian language.
Added Spanish language.

v 1.1

Fixed loss of error symbol for pulse.
Fixed errors when unpacking dials.
Fixed bug with incorrect model definition for GTS 3.

Version 17.1
Fixed the bugs that were found.
Added support for Cheetah 2 Pro.

Old versions

v 10.0
v 10.1
v 10.2
v 10.3
v 10.4
v 11.0
v 11.1
v 11.2
v 12.1
v 13.0
v 13.1
v 13.2
v 14.1
v 15.0
v 15.1
v 16.0
v 16.1
v 17.0

PS. The interface was translated using an online translator. If someone wants to improve the translation, then write to the PM.

PS2. Many people ask how to install watch faces. For starters, I advise you to read this topic. Personally, I prefer to use this program to install the created watch faces on the GTR 3 (for the GTS 3)

Сollection of code examples for use in watch faces.

Donate to the author - PayPal: [email protected].
Buy me a coffee

[SashaCX75]

Could you advise, what I am doing wrong? The font is copied into the fonts folder inside the assets folder of the project.

Please describe in more detail what you are doing. Judging by the error message, the editor cannot find the font file.

[Puckersunch]

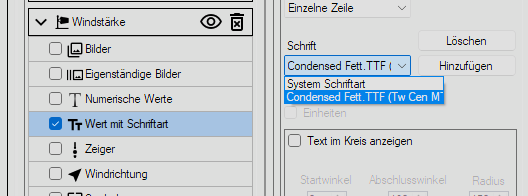

I have edited the Watchface to feature several Fields with the same font:

Spoiler

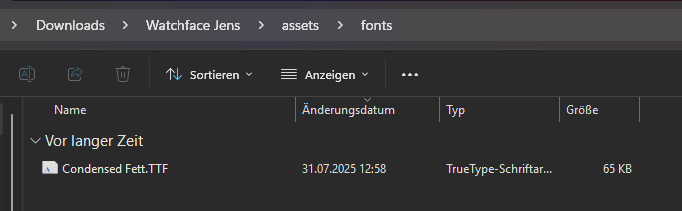

This Font is also already copied in the fonts folder:

Spoiler

However, once I click on the button to pack the Watchface, I get the posted error message.

[SashaCX75]

However, once I click on the button to pack the Watchface, I get the posted error message.

If the error occurs not during the preview but specifically when packaging the dial, please send me the project in which the error occurs and I will look into it.

[Puckersunch]

Just tested it again, it's specifically when packaging. Will send the Link via DM.

[SashaCX75]

Just tested it again, it's specifically when packaging. Will send the Link via DM.

An error in the editor. It occurs if the font extension is written in uppercase letters. I’ll look into why this is happening and fix it in future versions.

[SashaCX75]

Version 17.0

Archive

Dropbox
GoogleDrive

Installer

Dropbox
GoogleDrive

Added the ability to create a ZAB file for publication in the store (button in settings)
Added wind speed in km/h
Added atmospheric pressure in mm Hg
Added support for T-Rex Ultra 2.

[EmaPolice]

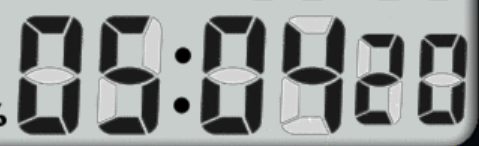

Guys I have a question. When I create my watchface and when I use digital time by font or PNG images, how I can avoid the change continuous of position of number? For example, in terms of space occupied, 11:11 takes up less space than 00:00. How can I make this space uniform?

[frankh93]

Guys I have a question. When I create my watchface and when I use digital time by font or PNG images, how I can avoid the change continuous of position of number? For example, in terms of space occupied, 11:11 takes up less space than 00:00. How can I make this space uniform?

It shouldn't happen if you use png images for the clock cause you have to use images with the same dimensions (width and height) to use them. Just be sure to enable the option to add zeros to both hour and minutes digits and it should be fine. But if you wanna use font file it's kinda complicated cause it's gonna follow the tracking of the font itself.

[SashaCX75]

Guys I have a question. When I create my watchface and when I use digital time by font or PNG images, how I can avoid the change continuous of position of number? For example, in terms of space occupied, 11:11 takes up less space than 00:00. How can I make this space uniform?

If you are using images, they should all be the same size. If you are using a font, you can centre-align the text.

[EmaPolice]

Guys I have a question. When I create my watchface and when I use digital time by font or PNG images, how I can avoid the change continuous of position of number? For example, in terms of space occupied, 11:11 takes up less space than 00:00. How can I make this space uniform?

It shouldn't happen if you use png images for the clock cause you have to use images with the same dimensions (width and height) to use them. Just be sure to enable the option to add zeros to both hour and minutes digits and it should be fine. But if you wanna use font file it's kinda complicated cause it's gonna follow the tracking of the font itself.

Guys I have a question. When I create my watchface and when I use digital time by font or PNG images, how I can avoid the change continuous of position of number? For example, in terms of space occupied, 11:11 takes up less space than 00:00. How can I make this space uniform?

If you are using images, they should all be the same size. If you are using a font, you can centre-align the text.

OK, I'll take a closer look. My problem is that when the number 1 appears, it messes up the position because it's smaller. I'm basing this on the font, and even if I set it to center alignment, the problem persists.

https://ibb.co/BV8nn4qm
https://ibb.co/zHJ2T5rL

[frankh93]

@EmaPolice as I said, the best you can do is to use the numbers as images. As they gotta de the same dimensions (width and height) it should fix your problem on the spacing

[EmaPolice]

@EmaPolice as I said, the best you can do is to use the numbers as images. As they gotta de the same dimensions (width and height) it should fix your problem on the spacing

II'm working on this, thanks

[SashaCX75]

You can also create the separator as a stand-alone text element and position it where you want. Then create the hours using text and align them to the right. Create the minutes using text and align them to the left.

[EmaPolice]

Using PNG or font?

[SashaCX75]

Using PNG or font?

If your aim is for the separator between the hours and minutes to always remain in the same place, it’s easier to use a PNG image.
But you can also achieve this using a font. In my previous post, I explained how to do this.

[taw_bip]

Guys I have a question. When I create my watchface and when I use digital time by font or PNG images, how I can avoid the change continuous of position of number? For example, in terms of space occupied, 11:11 takes up less space than 00:00. How can I make this space uniform?

Use a monospaced font where every character has the same fixed width.
https://fonts.google.com/?preview.scrip ... FMonospace

[SashaCX75]

Version 17.1

Archive

GoogleDrive
Dropbox

Installer

GoogleDrive
Dropbox

Fixed the bugs that were found.
Added support for Cheetah 2 Pro.

[Postmortem]

I have an issue with the font colors after importing a watch face. They get a sort of black outline. Here is the before and after unpacking a watch face:

Spoiler

How do i prevent this from happening?

@SashaCX75

[SashaCX75]

I have an issue with the font colors after importing a watch face. They get a sort of black outline. Here is the before and after unpacking a watch face:

I can’t tell from the screenshot exactly what’s going wrong. And I’m not entirely sure what you’re trying to do. Perhaps some artefacts are simply appearing when the dial is unpacked, or maybe a particular element isn’t displaying.

[Postmortem]

I have an issue with the font colors after importing a watch face. They get a sort of black outline. Here is the before and after unpacking a watch face:

I can’t tell from the screenshot exactly what’s going wrong. And I’m not entirely sure what you’re trying to do. Perhaps some artefacts are simply appearing when the dial is unpacked, or maybe a particular element isn’t displaying.

Hello and thank you for the fast reply:

Spoiler

Before:


After unpacking:

As you can see, there's now a black line around the white clear parts of the number. This happens after i unpack a watchface. The black outline is not present in the original watchface. It's like an under shadow is being added to the font after unpacking.

[loznic89]

Hi, is version 17.1 compatible with the Amazfit Bip Max? Thanks and great work with the editor!

Edit:I saw that this is 17.2 beta

[awrun]

Hi SashaCX75.
I saw that someone is using the 17.2 beta app to create bip max watch faces.
I would like to try it too, but I can't find it. Is it possible to download it somewhere?
The watch is not available here yet, maybe it will be from June 1st, but I thought I would create the watch faces by then.
And thank you for your work, I really liked using your editor for the gts 4 mini.
And sorry for my engilsh.

[SashaCX75]

No. This is a closed-beta version.

[awrun]

Ok, I'll wait for the final version then.
Thanks in advance.
