WFZMaker

[VIzzAR]

Hello . I present to you my program to create a watch face (.wfz). The program now is in beta.
- program only for windows ver. 7 and above,
- limit on the number of widgets in the project: 12,
- in the folder with the installed program there is a folder "Watch faces" which contains 3 unique watch faces,
- no hot keys,
- real-time changes,
- LoFi mode in real time,
- intuitive interface (i hope).

Your feedback will help make my program better

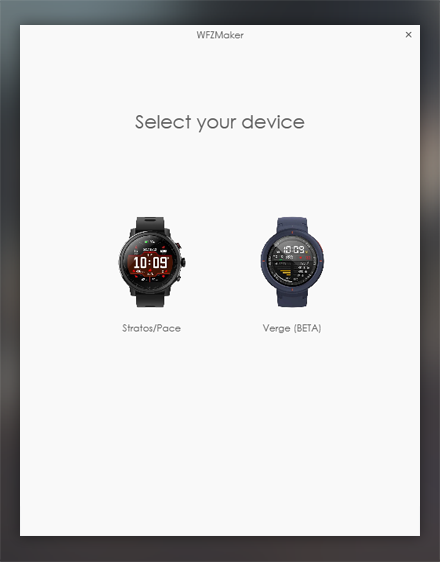

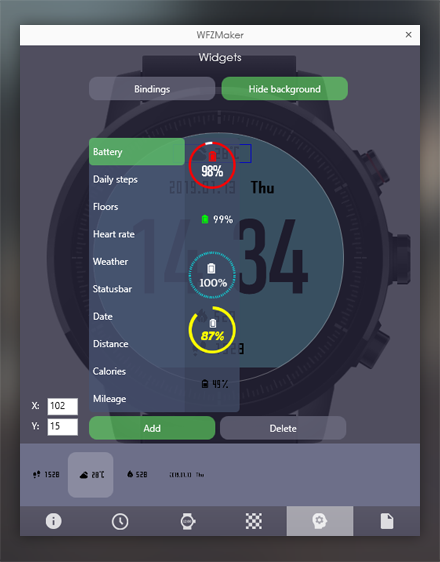

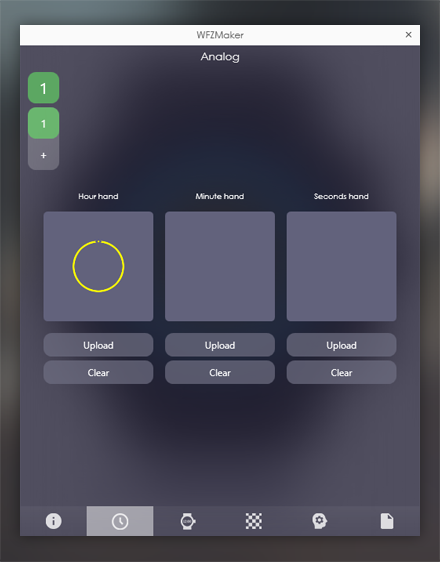

Screenshots

Help

- in the tab "Watchface information", field "Title" - this is how the watch face will be called in your watch, archive name can be any,
- all changes in the tab "Watchface information" automatically saved every 5 seconds, or by pressing the enter key.
How to add configuration?
- press the button "+".
How to delete configuration?
- left-click on the configuration.

What's new

Ver. 1.0.1 Beta:
- fixed incorrect recording of color when saving, when figures are created through the program,
- correction of the name of executable files.
Ver. 1.1.0 Beta:
- fixed bug with loading widgets, the error was in the model number for the widget date,
- limiting the number of widgets increased to 8.
Ver. 1.2.0 Beta: 03/04/2019
- fixed bugs,
- changed widget selection window,
- now you can open wfz by Verge, but you will need to edit the coordinates manually,
- improved program stability,
- now when installing a shortcut is automatically added to the desktop,
- easter eggs added.
Ver. 1.3.0 Beta: 08/04/2019
- fixed bugs,
- increased program stability,
- the application has received administrator rights,
- slightly modified the widget selection window,
- slightly modified the watchface information window,
- added color selector,
- I had to turn off the quantization of the image while maintaining the lofi in the background, because it was not shown on the watch. Now a simple conversion to 8 colors. I will understand why this happens,
- statusbar widget is no longer forcibly written,
- completely reworked module working with numbers. Now you can upload the numbers individually and export them.
Ver. 1.4.0 Beta: 11/04/2019
- fixed bugs,
- increased program stability,
- fixed bug with converting using quantization,
- added function to invert transparency of numbers. It works only if the numbers were created through the program,
- update check has been added.
Ver. 1.5.0 Beta: 24/04/2019
- fixed widget "mileage" type bugs,
- slightly changed interface,
- added automatic selection of the widget when you hover the cursor,
- added application settings,
- now two types of font trimming are available,
- the device selection window hints at a quick support for Verge,
- fixed bug with creating preview,
- now you can upload your watchfaces on your watch from the app (if watches connected),
- added new standart watchface.
Ver. 1.5.1 Beta: 24/04/2019
- fixed bug with a black background in power save mode,
- fixed not working download on the device.
Ver. 1.5.2 08/05/2019
- found and fixed the cause of the application not starting,
- now loading to watch from application does not work, there is some problem with the library.
Ver. 1.6.0: 18/05/2019
- added time selector
- added fonts preview
- added Verge! (Beta) Now all the same as for Stratos.
- added automatic conversion of watchfaces from Verge to Stratos/Pace and from Stratos/Pace to Verge. The program determines whether the model belongs to the size of the background,
- several improvements have been added, I don’t remember which ones).
Ver. 1.6.1: 20/05/2019
- fixed widget bug,
- added file association,
- if you have version 1.6.0, the update check may not work. This version fixes update check bug.
Ver. 1.6.2: 21/05/2019
- fixed bug with a second hand on the preview.
Ver. 1.6.3: 26/05/2019
- fixed some bugs.
Ver. 1.6.4: 30/05/2019
- fixed some small bugs.
- fixed a bug when loading numbers that are created using the program,
- fixed bug when saving to lofi (wrong color pallet),
- added 26w support in Verge.
Ver. 1.6.5: 13/06/2019
- fixed 26w support in Verge.
Ver. 2.0.0: 30/06/2019
- fixed some bugs,
- updated design,
- rewrited wfz creation module,
- background configuration added
- timehands configuration added
- 2 standard dials added
Ver. 2.0.1: 30/06/2019
- fixed some bugs in wfz creation module

Download

Attention! Before installing, remove the previous version of the program.
Ver. 1.6.0
Ver. 1.6.1
Ver. 1.6.2
Ver. 1.6.3
Ver. 1.6.4
Ver. 1.6.5
Ver. 2.0.0
Ver. 2.0.1

[TXK]

机械金属 修正版.wfz

(1.05 MiB) Downloaded 1713 times

Import this dial, program error, and stop run.

[VIzzAR]

机械金属 修正版.wfzImport this dial, program error, and stop run.

The bug fixed in V1.1.0. The error was when reading the date widget. And that watchface from Amazfit Verge

[TXK]

机械金属 修正版.wfzImport this dial, program error, and stop run.

The bug fixed in V1.1.0. The error was when reading the date widget. And that watchface from Amazfit Verge

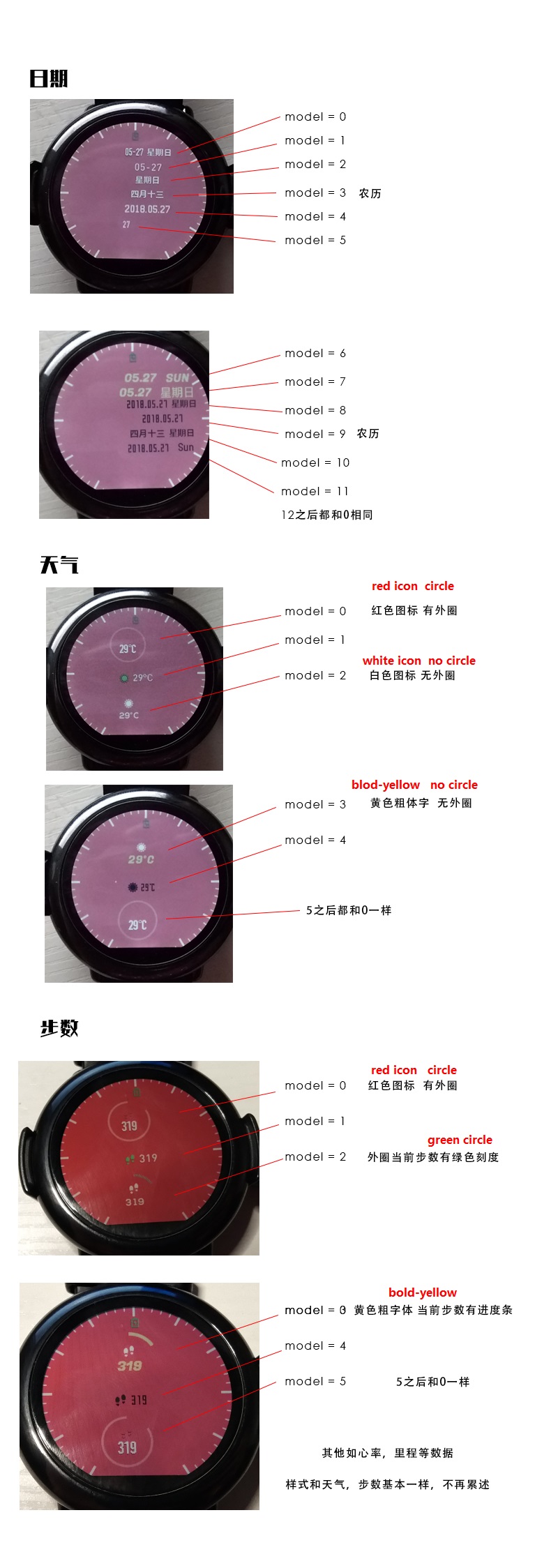

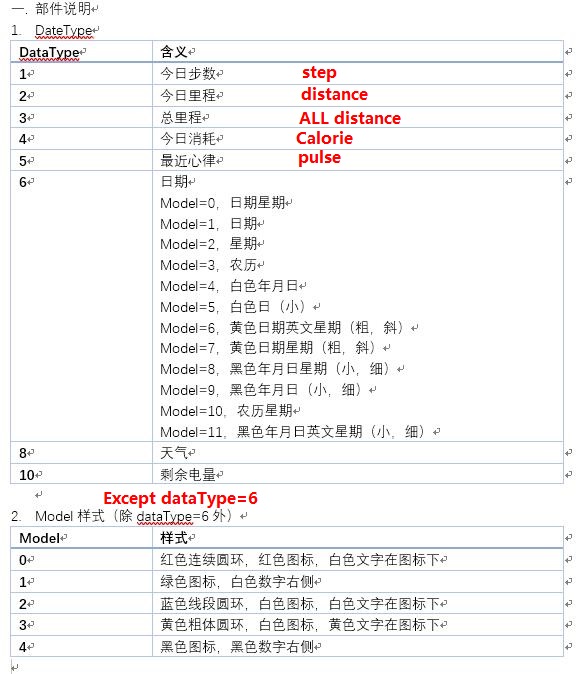

For all available patterns and parameters, please refer to the following and illustrations:

[VIzzAR]

机械金属 修正版.wfzImport this dial, program error, and stop run.

The bug fixed in V1.1.0. The error was when reading the date widget. And that watchface from Amazfit Verge

For all available patterns and parameters, please refer to the following and illustrations:

Do you know anything about creating watchface for a Amazfit Bip and Cor? I plan to add making of watchface for them.

[TXK]

The bug fixed in V1.1.0. The error was when reading the date widget. And that watchface from Amazfit Verge

For all available patterns and parameters, please refer to the following and illustrations:

Do you know anything about creating watchface for a Amazfit Bip and Cor? I plan to add making of watchface for them.

Maybe you can get inspiration from it:

https://v1ack.github.io/watchfaceEditor/

and..........


test-111.wfz

(138.64 KiB) Downloaded 1234 times

----------------------Can you make this software compatible with verge?



moto.wfz

(81.94 KiB) Downloaded 1271 times

[TXK]

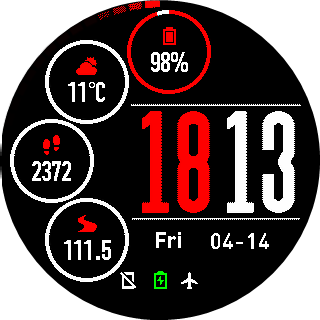

The program automatically generates the material picture, DPI must be 96, you are now generating the picture, DPI is 72. So, there will be size error.

and.......


Porsche-Design-Remake.wfz

(213.52 KiB) Downloaded 1241 times

[TXK]

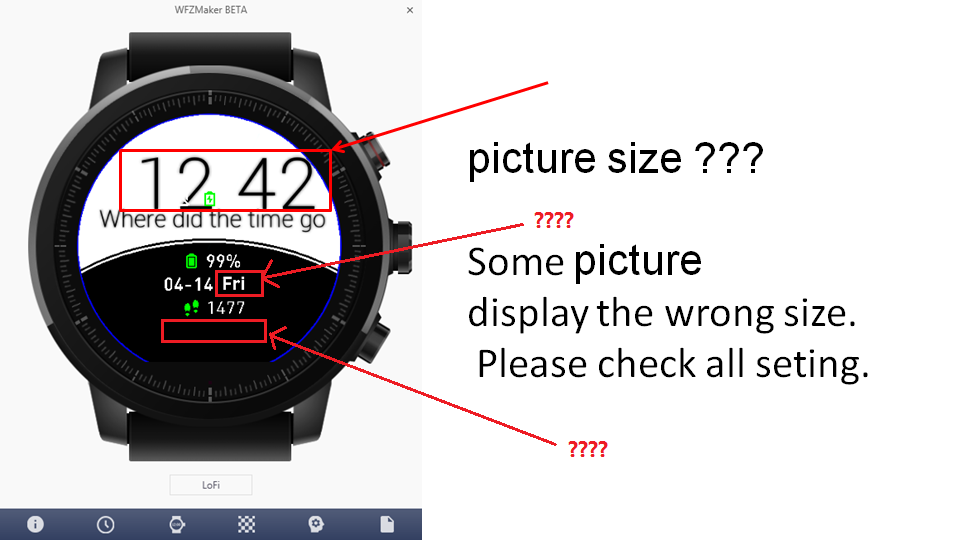

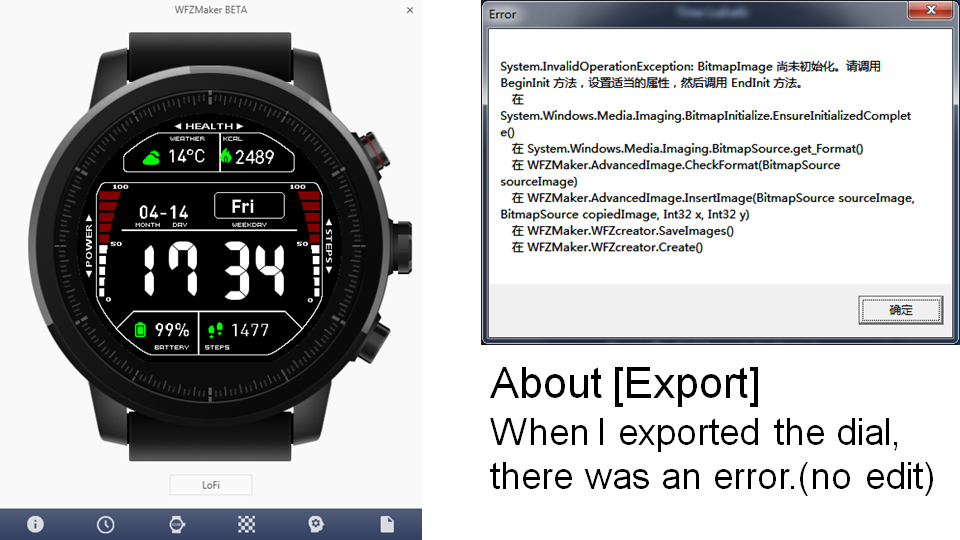

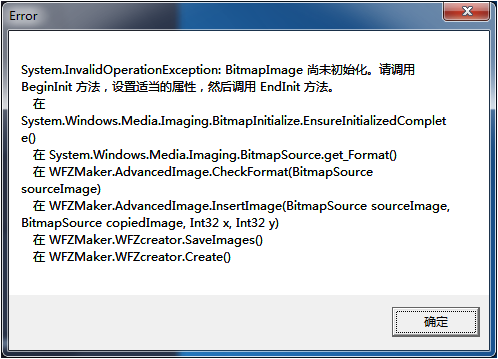

BUG feedback：


[TXK]

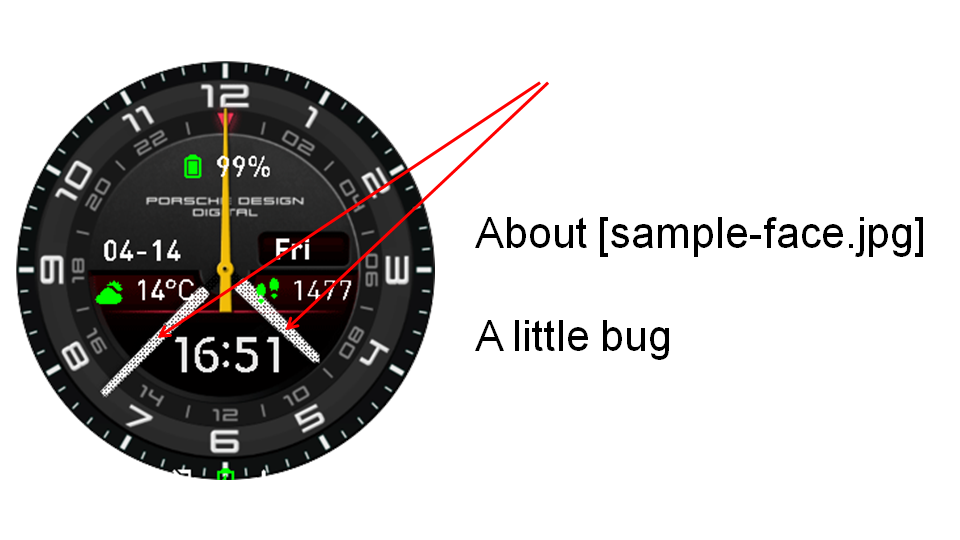

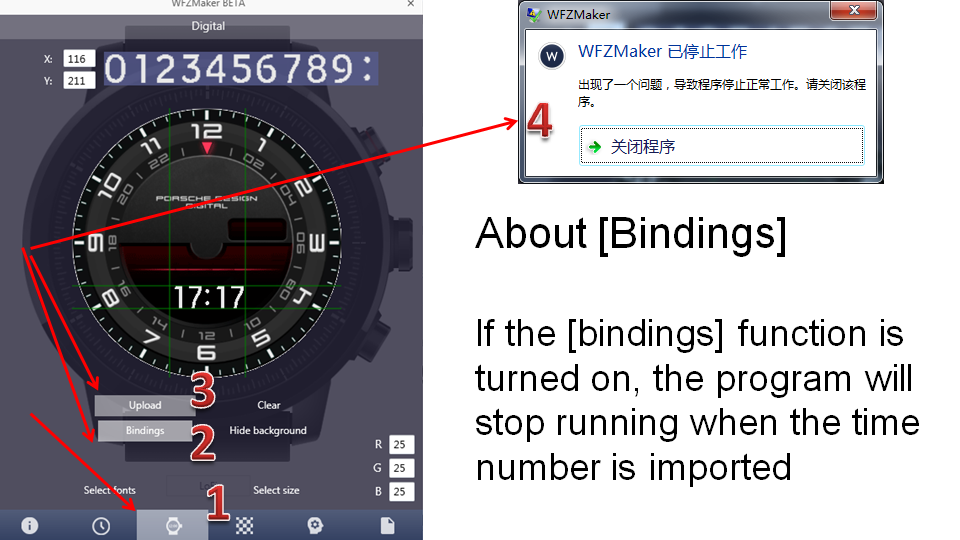

BUG feedback-2：


Time Lcd.wfz

(38.77 KiB) Downloaded 1357 times

[VIzzAR]

Thank! Very detailed bug feedback. Some bugs are already fixed. I will work with the rest. Verge support will be added later.

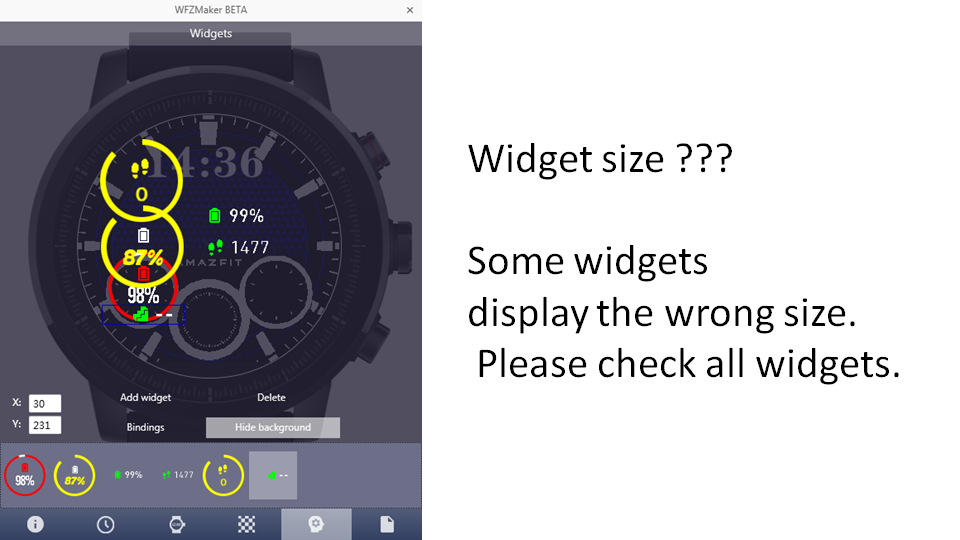

I had a problem with widgets, since the rest of the watch face builders lack most of the widgets I had to draw them manually by the screen photo. If I had screenshots with all the widgets and known coordinates, I would draw them in good quality.

[TXK]

Thank! Very detailed bug feedback. Some bugs are already fixed. I will work with the rest. Verge support will be added later.
I had a problem with widgets, since the rest of the watch face builders lack most of the widgets I had to draw them manually by the screen photo. If I had screenshots with all the widgets and known coordinates, I would draw them in good quality.

Sorry, I don't have Stratos (Pace)
（ Maybe...... I'm wrong. Yellow Widgets are bigger?）

[TXK]

This is the correct DPI picture. You can get the right Widgets from here

You can also use this background image to check whether the size of Widgets is normal.
Sorry, I don't have Stratos (Pace)
（ Maybe...... I'm wrong. Yellow Widgets are bigger?）


[VIzzAR]

This is the correct DPI picture. You can get the right Widgets from here

You can also use this background image to check whether the size of Widgets is normal.
Sorry, I don't have Stratos (Pace)
（ Maybe...... I'm wrong. Yellow Widgets are bigger?）



On the stratos yellow widgets have size 100x100 pixels, but for example, red circle weather widget have size 84x84.

[VIzzAR]

A new update has been received that will bring more stability and a bit more functionality! See the topic header

[TXK]

Open the following dial file and save it directly （without modifying it）.
Program stop runing

verge-moto.wfz

(81.94 KiB) Downloaded 1243 times


[VIzzAR]

Open the following dial file and save it directly （without modifying it）.
Program stop runing

verge-moto.wfz

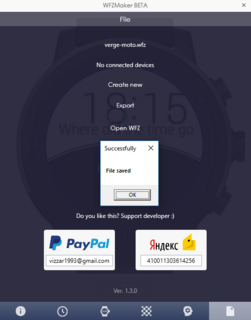

What version of the program? In V1.3.0 all ok.

[TXK]

Open the following dial file and save it directly （without modifying it）.
Program stop runing

verge-moto.wfz


What version of the program? In V1.3.0 all ok.

It doesn't work in version 1.2.0.
1.3.0-1.4.0 can be saved

and .......
Some new feedback

feedback.zip

(1.12 MiB) Downloaded 1265 times

[sercep]

can we change the color of other numbers

[sercep]

date end battery ...can we change the color of other numbers

[VIzzAR]

A new update V1.5.1 has been released! Fixed major bugs.

Ver. 1.5.1 Beta: https://drive.google.com/file/d/1z9tjk- ... sp=sharing

[EUPHORIC]

1.5.0, 1.5.1 not opening after install. Windows 10 (1908). 1.4.0 working fine (opening without any problems). How to run 1.5.1? As administartor there is no option.

[gildo52]

I'm using this tool, works fine. Thanks for your job, may be could by you a beer. Just one thing, when adding steps widget, white letters with light blue progress, steps count displayed is zero, shoul be something like 9850

[VIzzAR]

New version available! Now the application should run.

Ver. 1.5.2 https://drive.google.com/file/d/16lHNI9 ... sp=sharing

[fernoliveira]

any prediction of when it will be available to Verge?

[chb]

Great work!
I wonder why there is only one month-date option in yellow and fixed size for Pace/Stratos/Verge-WF. And why is the other option for displaying the date so small??
You know https://sawfb.fabiobarbon.click/ ?
On my AmazFit Band 2 (Cor 2) it's easier to read all informations because the font is bigger, e.g. see pic
