Amazfit Watch faces

Hello community,

I've been asked several times how I do it with the watch faces and what software I use. The Software-question is easy to answer: Paint Shop Pro 2020 for the graphics, Notepad ++ for the code and 7zip to pack / unpack. Nothing else.

For the HOW-question - I sat down and wrote the ...

Table of contents

THE BASICS

Structure of the basic files
Special configurations in the base files
Structure of the "font.xml" file for displaying digits and characters

THE ELEMENTS

WatchFaceItem elements
WatchFaceComponent elements
Explanations of the parameters for the ...

You can use "watch skin local" (Local watch Face) in Mi Fit to update or change your watch face.
But you must to edit some bytes in the .BIN file In order to make that .bin file can be displayed in "watch skin local"

How to HEX your .BIN to use in "watch skin local" of Mi Fit
1. open your .BIN with ...

That watch face is not mine, I just solved the picture according to my understand.

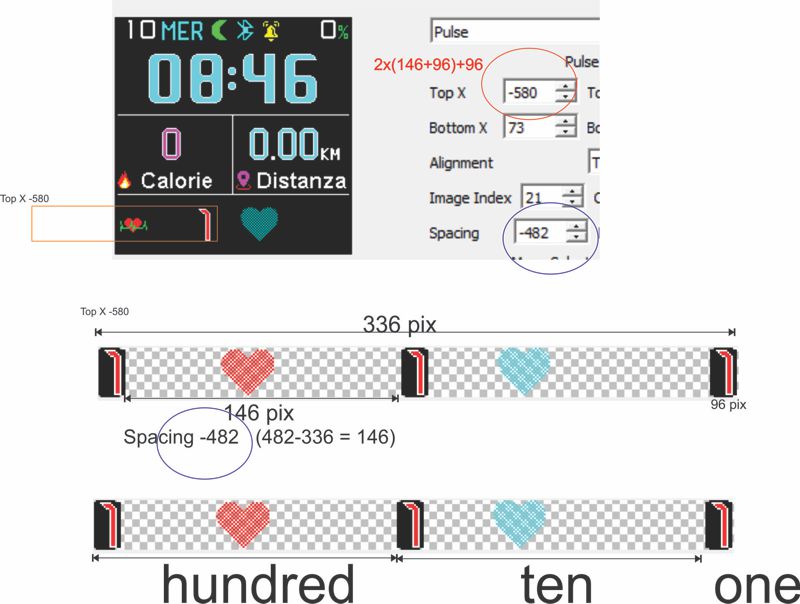

However, what I understand is as follows. ( Please see the picture below )

It's just my understanding. I'm not sure if it's 100% accurate or not.

BTW, what editor are you using that is displaying the spacing information in the image above? I've been using that online tool, and it doesn't look like that. Since you are the watch face expert, are you using a better/different tool?


Bip WF Editor by ilGruppoTester
https://www.mediafire.com ...

BTW, what editor are you using that is displaying the spacing information in the image above? I've been using that online tool, and it doesn't look like that. Since you are the watch face expert, are you using a better/different tool?


Bip WF Editor by ilGruppoTester
https://www.mediafire ...

You have to go to the "Edit" tab and make sure the settings
"TopLeftX": 0,
"TopLeftY": 0,
"BottomRightX": xx,
"BottomRightY": xx,
Are at least as large as your fonts added together plus spacing. If the box is too small on the "Design" tab, it'll look right in the editor, but not when made into a ...

OK, the problem is still here. This watch face https://amazfitwatchfaces.com/bip/view/23630 on preview show battery number, night temp wrong. I use "TopRight" align. For current temp (below of weather icon) i use "TopCenter". In editor is all ok and is positioned correctly, but when i create .bin ...

https://amazfitwatchfaces.com/cor/view/886
check everything should be fine

fanatcom wrote: 28 May 2019, 11:03

Hello, friends. Somewhere I found a very cool watch face, but lost the file and the place where he took it. 've looked everywhere, can't find any way. Help me find this watch face.
Thank you!!

https://amazfitwatchfaces.com/bip/view/18806

hi. i try make progress bar for distance. i use this amazing editor https://v1ack.github.io/watchfaceEditor/. the problem is that the editor resize my images. its bug or normal? because is impossible exactly set right positioning for images.

image in editor
https://i.postimg.cc/ZRm8xX4d/bip1.png ...

Try this should work on the latest firmware.

sometimes i like and need smaller weather icons as the original, which are as default in watchface editors. i noticed that fine icons are when you slide from main screen to the right and down. on the left side are perfect small weather icons. can someone grab these images from firmaware or how to do ...

Hi CGB,

As far as I know, the BIP's firmware only reports distance in kilometers, not miles, regardless of the settings in the app, so I think you're stuck with KM.

I can offer some help with changing the date format to dd (top)/mm (bottom).
Give me a few days to make the change. Meanwhile, send ...

Topic absorbed viewtopic.php?f=25&t=720

Hi Chris,

Yeah - for reasons I don't understand, BIP watchfaces can only display distance in kilometers, while the status page and app can be set to display miles.

A few developers have tried to create watchfaces that display miles but, as far as I know, no one has been successful.

I should have ...

Here your using wallpaper as images for AMPM, create resource images 1x1 and use them here
"DayAmPm": {
"TopLeftX": 0,
"TopLeftY": 0,
"ImageIndexAMCN": 0,
"ImageIndexPMCN": 0,
"ImageIndexAMEN": 0,
"ImageIndexPMEN": 0
}

Probably will not work with 7 days, please use 21 instead, also with ...

You can save it in 32 bit to fix image, also use palette version to compress it, and you can exclude and save some images in raw(if palette colors is higher than 250)

No, it's showing end of place holder of image for some purpose, alignment work like where to shift text in placeholder if it's very wide

https://amazfitwatchfaces.com/forum/viewtopic.php?f=14&t=709
If you are unable to use Hex program, you can try this program to patch bytes 17 to 24 in one click

Small program for patch file.bin on bytes 17 to 24 edit FF FF FF FF FF FF FF FF to 24 00 d0 03 00 00 3d 78 ( for PC )

https://i.postimg ...

Try this:

"WeekDay": {
"X": 5,
"Y": 21,
"ImageIndex": 7,
"ImagesCount": 21
}

For week day is necessary to have 21 images (7+7+7 -> Chinese + Chinese + your lang). Chinese + Chinese can by any another picture (e.g. numbers).

https://cdn1.savepice.ru/uploads/2019/8/5/6da5881f902a163d8262fb1b82a899b2-full.png



We have been working for a long time and continue to make our own Tool for watch faces.
Everything is built on these sources.

Support watch faces for devices

Amazfit Bip
Xiaomi Mi Band 4
Amazfit GTR ...
