GTR Watch face editor

[nelomf]

Hello

this is my first try on making a face for my gtr 47mm. Not making just change one i liked from French to Portuguese.
I've already finished but it is always 2.48mb.
What can i do to get it smaller

Tks
Manuel

These are the image files

Spoiler

And this is the code

Codice: Seleziona tutto

{
  "Info": {
    "DeviceId": 40
  },

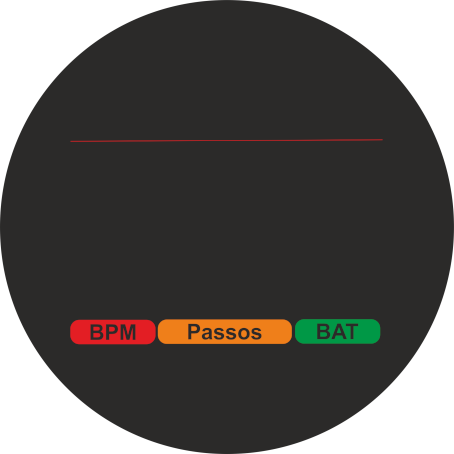

  "Background": {
    "Image": {
      "X": 0,
      "Y": 0,
      "ImageIndex": 0
    },
    "Preview": {
      "X": 0,
      "Y": 0,
      "ImageIndex": 1
    }
  },
  "Time": {
    "Hours": {
      "Tens": {
        "X": 29,
        "Y": 167,
        "ImageIndex": 2,
        "ImagesCount": 10
      },
      "Ones": {
        "X": 124,
        "Y": 167,
        "ImageIndex": 2,
        "ImagesCount": 10
      }
    },
    "Minutes": {
      "Tens": {
        "X": 241,
        "Y": 167,
        "ImageIndex": 2,
        "ImagesCount": 10
      },
      "Ones": {
        "X": 336,
        "Y": 167,
        "ImageIndex": 2,
        "ImagesCount": 10
      }
    },
    "Delimiter": {
      "X": 212,
      "Y": 178,
      "ImageIndex": 12
    }
  },
  "Activity": {
    "Pulse": {
      "TopLeftX": 67,
      "TopLeftY": 349,
      "BottomRightX": 158,
      "BottomRightY": 349,
      "Alignment": "Center",
      "Spacing": -4,
      "ImageIndex": 13,
      "ImagesCount": 10
    },
    "Steps": {
      "Step": {
        "TopLeftX": 153,
        "TopLeftY": 349,
        "BottomRightX": 299,
        "BottomRightY": 349,
        "Alignment": "Center",
        "Spacing": -4,
        "ImageIndex": 13,
        "ImagesCount": 10
      }
    }
  },
  "Date": {
    "MonthAndDay": {
      "Separate": {
        "MonthName": {
          "X": 257,
          "Y": 95,
          "ImageIndex": 23,
          "ImagesCount": 12
        },
        "Day": {
          "TopLeftX": 197,
          "TopLeftY": 96,
          "BottomRightX": 0,
          "BottomRightY": 0,
          "Alignment": "TopLeft",
          "Spacing": 0,
          "ImageIndex": 13,
          "ImagesCount": 10
        }
      },
      "TwoDigitsMonth": true,
      "TwoDigitsDay": true
    },
    "WeekDay": {
      "X": 62,
      "Y": 95,
      "ImageIndex": 35,
      "ImagesCount": 7
    }
  },
  "Status": {
    "Bluetooth": {
      "Coordinates": {
        "X": 153,
        "Y": 45
      },
      "ImageIndexOn": 45
    },
    "Alarm": {
      "Coordinates": {
        "X": 213,
        "Y": 400
      },
      "ImageIndexOn": 44
    },
    "Lock": {
      "Coordinates": {
        "X": 176,
        "Y": 400
      },
      "ImageIndexOn": 43
    },
    "DoNotDisturb": {
      "Coordinates": {
        "X": 252,
        "Y": 399
      },
      "ImageIndexOn": 42
    }
  },
  "Battery": {
    "Text": {
      "TopLeftX": 296,
      "TopLeftY": 349,
      "BottomRightX": 382,
      "BottomRightY": 349,
      "Alignment": "Center",
      "Spacing": -4,
      "ImageIndex": 13,
      "ImagesCount": 10
    }
  }
  }


[asoo]

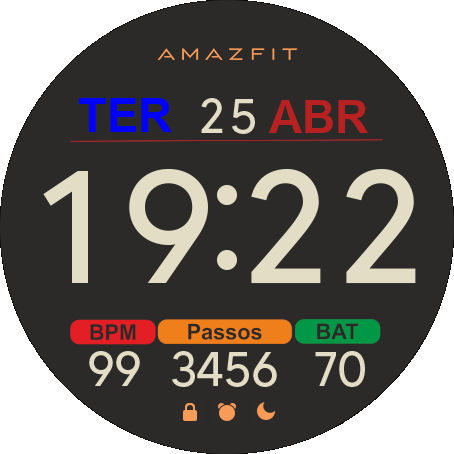

Based on the image you posted, you could try shrinking your Preview image ( 0001.png ) to about 256x256 or smaller, it might reduce your BIN size

example File BIN after resize 0001.png to 256x256
Normal BIN (1.93 Mb) :

test_packed.bin

(1.93 MiB) Scaricato 81 volte

PS.
Next time, it is recommended to attach BIN file, it's better than posting pictures and code.

[nelomf]

Hello

Tks for the response.
Next time i will send the BIN.
It worked tks again
Manuel

[PuckStar]

Which watchface is it please? Where can I find it?
