Latest Mi Fit stopped custom BIP watchfaces!!

[asadulhuq]

Latest Mi Fit version (V 3.5.8) prohibited installing BIP watchfaces. The version currently doesn't show online watchfaces. This is why we can't install custom watchfaces from amazfitwatchfaces any more.
What is your experience regarding this issue?
Please respond if one knows the issue and the solution, if there is any. Thanks in advance.

[Paquiderme]

Yup, shame on them... I sent them an e-mail yesterday, lets wait and see if they answer...

[romstemp]

You can use "watch skin local" (Local watch Face) in Mi Fit to update or change your watch face.
But you must to edit some bytes in the .BIN file In order to make that .bin file can be displayed in "watch skin local"

How to HEX your .BIN to use in "watch skin local" of Mi Fit
1. open your .BIN with HexEdit ( https://www.dropbox.com/s/hmqdynh8dl0lj ... t.zip?dl=0 )
2. on bytes 17 to 24 edit FF FF FF FF FF FF FF FF to 0F 00 EE 00 00 00 39 60 and save

HexEdit
FF FF FF FF FF FF FF FF to 0F 00 EE 00 00 00 39 60


3. Now your .BIN can use in "watch skin local" of Mi Fit


How to use "watch skin local" ( Local watch Face )
1. Folder of "watch skin local" is /storage/emulated/0/Android/data/com.xiaomi.hm.health/files/watch_skin_local/
2. make new folder in "watch skin local" ( one folder for one watch face )
3. Copy modified youreWatchface.BIN and yourWatchface.jpg or png or gif in your new folder
4. Now open Mi fit and go to "Local watch Face" you can see your Watcface

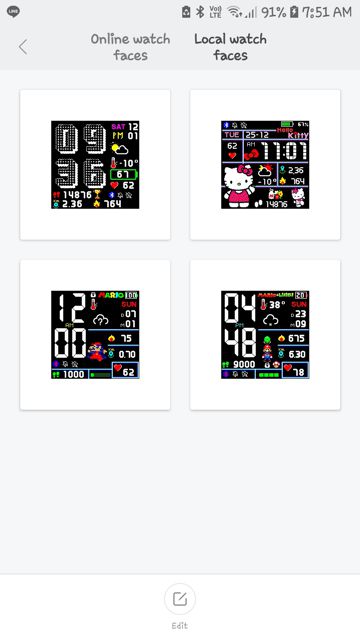

( Local watch Face )
watch_skin_local

Screenshot_20190213-075228_Mi Fit.jpg (31.71 KiB) Visto 9782 volte

[romstemp]

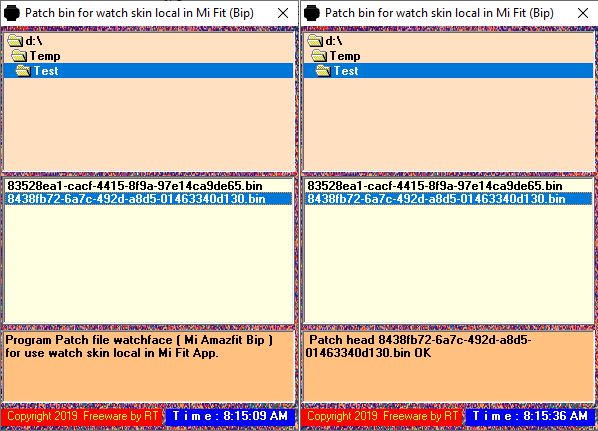

I write a small program for patch bytes 17- 24 of BIN with VB . ( for Windows)
The program will work by patch FF FF FF FF FF FF FF FF to 0F 00 EE 00 00 00 39 60
use by Double click on file.BIN in screen 2

L’allegato VB-Bip.jpg non è più disponibile

If you can't use hex, you can try using my program to patch BIN
viewtopic.php?f=6&t=560

[asadulhuq]

Thanks to romstemp. Finally I could view my edited watch face in MiFit local watch faces by using your method. However, I do not know why MiFit had to change their app to stop loading the .bin file as usual. BTW, I used HxD (https://mh-nexus.de/en/hxd/), the hex editor to edit the .bin file. HxD is a free and excellent editor, in my opinion.

[asadulhuq]

Just a question.
How do you add images in a reply on this site? In my case the amazfitwatchfaces stop any image I want to add within my reply. Thanks.

[romstemp]

Just a question.
How do you add images in a reply on this site? In my case the amazfitwatchfaces stop any image I want to add within my reply. Thanks.

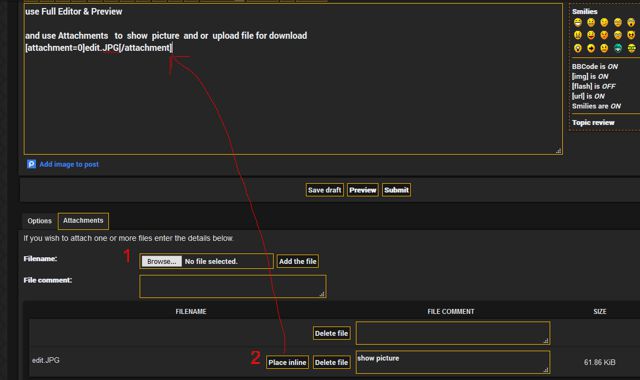

use Full Editor & Preview and use Attachments to show picture and or upload file for download

show picture


[TXK]

I write a small program for patch bytes 17- 24 of BIN with VB . ( for Windows)
The program will work by patch FF FF FF FF FF FF FF FF to 0F 00 EE 00 00 00 39 60
use by Double click on file.BIN in screen 2

If you can't use hex, you can try using my program to patch BIN
bip-patch-bin.zip

Thank you very much for your work!!

[GIK-Team]

[mention]romstemp[/mention], thank you! We added your materials in the instructions: viewtopic.php?f=14&t=128

[romstemp]

@romstemp, thank you! We added your materials in the instructions: viewtopic.php?f=14&t=128

With pleasure

[GIK-Team]

romstemp, thank you! We added your materials in the instructions: viewtopic.php?f=14&t=128

viewtopic.php?f=6&t=560 <---- My new topic have new version for my program

I replaced
