Amazfit watchfaces Tool

[w0mbat]

Pasos que he seguido para poder editar los ficheros del reloj GTR:
Steps that I have followed to be able to edit the GTR clock files:
...

Thx for the recap!

In the previewGenerator python file (watchFaceParser directory), change the size to 454 also.

[glenan]

Hi

I downloaded and used AmazTool All 0.1.0.11.zip with an Amazfit GTR
unpack and packed (after adding a logo on one existing watchface)
I installed new bin file with Notify and Fitness for Amazfit
It worked but with problems of colors as said above.

Thanks a lot for your job and I hope you will solved it.

[EDIT] I don't know what is the use of Watchface.exe because I only used pack.cmd and repack.cmd

[Bhoken]

[mention]manelto[/mention]Thank you ! A couple of questions. Why you modify the header? Works also for verge lite? I use image that I create with illustrator in the same resolution of a watchface that I have use as a model, it works fine?

[manelto]

manelto, good instruction! But i have error while i unpack bin file:

Código: Selecionar todos

G:\Clock\amazfit_verge_lite_tools-master>py main py 01.bin
  File "main py", line 28, in <module>
    program.Parser.unpackWatchFace(inputFileName)
  File "G:\Clock\amazfit_verge_lite_tools-master\program py", line 123, in unpackWatchFace
    reader = Parser.readWatchFace(inputFileName)
  File "G:\Clock\amazfit_verge_lite_tools-master\program py", line 89, in readWatchFace
    traceback.print_stack()
Done

Also included log file. What's wrong?

P.S. i remove here "." in code "main py" and "program py", because: "You can’t post image, email or url links that are external to this domain. Please remove main py"

I can't understand you. You don't put points between main and py?
I do. I need to put them so that the instruction is recognized. At least in windows.

[manelto]

@maneltoThank you ! A couple of questions. Why you modify the header? Works also for verge lite? I use image that I create with illustrator in the same resolution of a watchface that I have use as a model, it works fine?

The author of the program is afwafwafw. And the original program is to work directly with the verge lite. So, if you have that watch you don't have to change anything.
The modification that I detail above is to adapt the code for the GTR watch

[manelto]

Pasos que he seguido para poder editar los ficheros del reloj GTR:
Steps that I have followed to be able to edit the GTR clock files:
...

Thx for the recap!

In the previewGenerator python file (watchFaceParser directory), change the size to 454 also.

Thanks!

Muchas gracias!

[PavlinBecks]

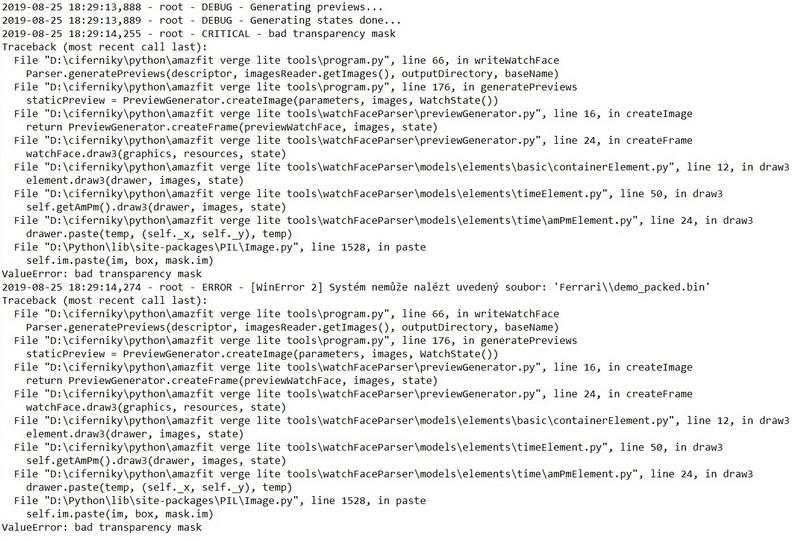

Please help me, when using Python tool from GitHub, I always get this error. What am I doing wrong? In Log I found a bug about transparency but I don't know how to fix it. Thank you.

[manelto]

Another change (remember : these changes are only for GTR):

Código: Selecionar todos

temp = Image.new('RGBA', (360, 360))
temp.paste(bitmap, (180 - x, 180 - y), bitmap)

for...

Código: Selecionar todos

temp = Image.new('RGBA', (454, 454))
temp.paste(bitmap, (227 - x, 227 - y), bitmap)

These changes are in ...\watchFaceParser\models\elements\common\imageElement.py

[manelto]

Please help me, when using Python tool from GitHub, I always get this error. What am I doing wrong? In Log I found a bug about transparency but I don't know how to fix it. Thank you.

I can't see the image

[koolgao]

Another change (remember : these changes are only for GTR):

Código: Selecionar todos

temp = Image.new('RGBA', (360, 360))
temp.paste(bitmap, (180 - x, 180 - y), bitmap)

for...

Código: Selecionar todos

temp = Image.new('RGBA', (454, 454))
temp.paste(bitmap, (227 - x, 227 - y), bitmap)

These changes are in ...\watchFaceParser\models\elements\common\imageElement.py

una pregunta esto para que vale? hay algo para que se vea bien el gif que crea? ya q no me sale el reloj entero

[PavlinBecks]

Please help me, when using Python tool from GitHub, I always get this error. What am I doing wrong? In Log I found a bug about transparency but I don't know how to fix it. Thank you.

I can't see the image

Sorry, I can't insert

Spoiler

[manelto]

Another change (remember : these changes are only for GTR):

Código: Selecionar todos

temp = Image.new('RGBA', (360, 360))
temp.paste(bitmap, (180 - x, 180 - y), bitmap)

for...

Código: Selecionar todos

temp = Image.new('RGBA', (454, 454))
temp.paste(bitmap, (227 - x, 227 - y), bitmap)

These changes are in ...\watchFaceParser\models\elements\common\imageElement.py

una pregunta esto para que vale? hay algo para que se vea bien el gif que crea? ya q no me sale el reloj entero

Una cosa es el gif que se crea a modo de previsualización y otra el bin que instalas en el reloj.
El bin funciona correctamente sin necesidad de este cambio ni del que ha descrito w0mba más arriba.
Pero para que el gif y las otras imágenes que se generan a modo de previews estén completos necesitas el cambio descrito por w0mbat. Y para centrar las agujas de los relojes y otras imágenes en la esfera tienes que hacer el cambio que he modificado.

[The Matrix]

Hello,

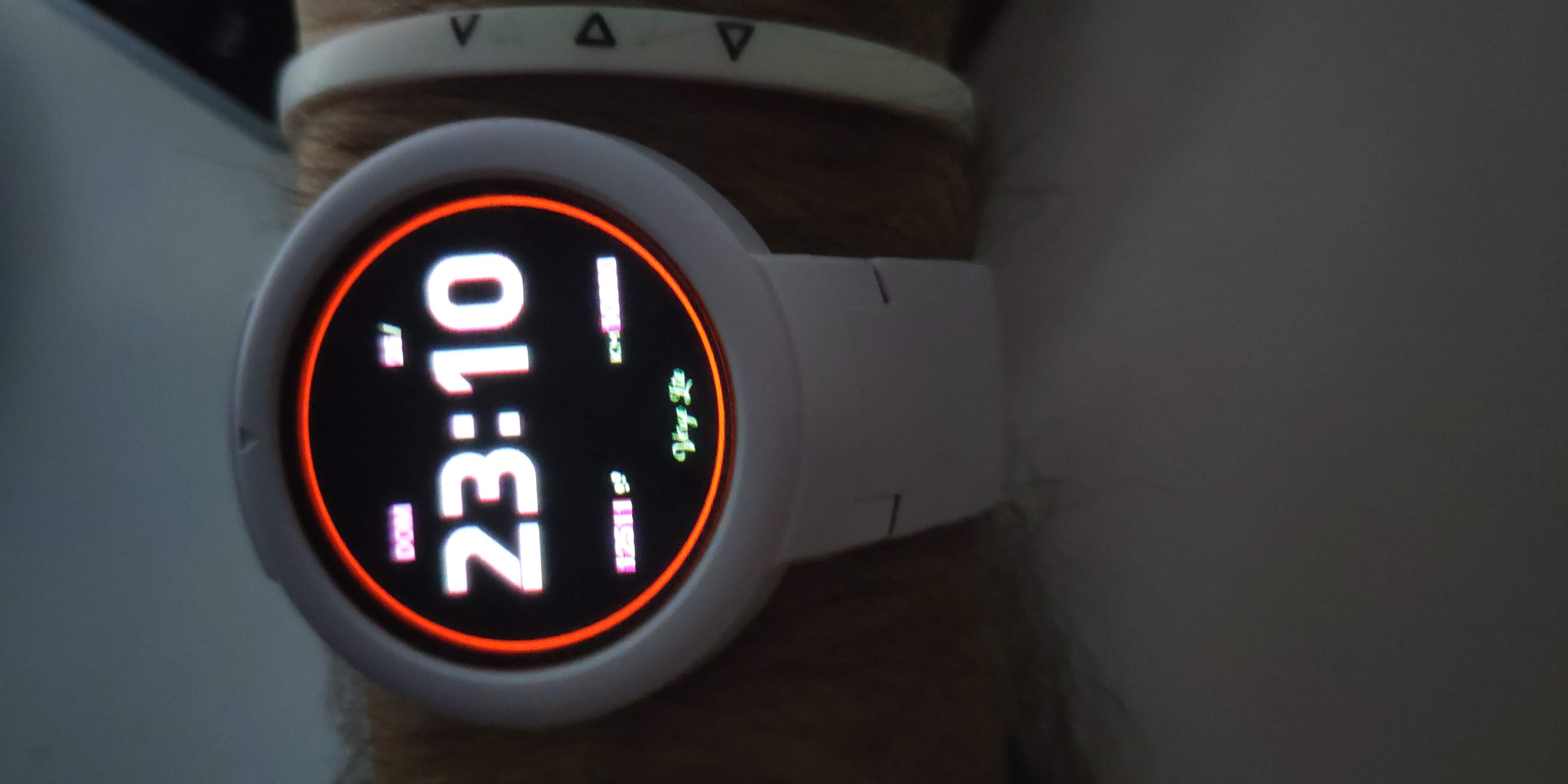

I've made a modification from other watchface, but when I upload to my Verge lite, colors are inverted and I do not know how to solve it.
I have tried to unpack then repack again but no luck...

Spoiler


[hall]

Hi

I downloaded and used AmazTool All 0.1.0.11.zip with an Amazfit GTR
unpack and packed (after adding a logo on one existing watchface)
I installed new bin file with Notify and Fitness for Amazfit
It worked but with problems of colors as said above.

Thanks a lot for your job and I hope you will solved it.

[EDIT] I don't know what is the use of Watchface.exe because I only used pack.cmd and repack.cmd

[mention]glenan[/mention] if you click edit or open .cmd file in text editor you will know that it call watchface.exe to process it. cmd just command set like batch file.

[koolgao]

Another change (remember : these changes are only for GTR):

Código: Selecionar todos

temp = Image.new('RGBA', (360, 360))
temp.paste(bitmap, (180 - x, 180 - y), bitmap)

for...

Código: Selecionar todos

temp = Image.new('RGBA', (454, 454))
temp.paste(bitmap, (227 - x, 227 - y), bitmap)

These changes are in ...\watchFaceParser\models\elements\common\imageElement.py

una pregunta esto para que vale? hay algo para que se vea bien el gif que crea? ya q no me sale el reloj entero

Una cosa es el gif que se crea a modo de previsualización y otra el bin que instalas en el reloj.
El bin funciona correctamente sin necesidad de este cambio ni del que ha descrito w0mba más arriba.
Pero para que el gif y las otras imágenes que se generan a modo de previews estén completos necesitas el cambio descrito por w0mbat. Y para centrar las agujas de los relojes y otras imágenes en la esfera tienes que hacer el cambio que he modificado.

Y que tengo que hacer para lo del gif este ultimo que has puesto aquí ya lo tengo hecho pero el gif we sigue saliendo medio reloj

[pallbearer]

[mention]manelto[/mention] why not use the avialable github-fork of "amazfit_verge_lite_tools" from "ghbhaha" for the gtr, for your work. => ghbhaha/amazfit_gtr_tools

kr, pallbearer

ps: sorry i'm prohibited from posting links

[manelto]

una pregunta esto para que vale? hay algo para que se vea bien el gif que crea? ya q no me sale el reloj entero

Una cosa es el gif que se crea a modo de previsualización y otra el bin que instalas en el reloj.
El bin funciona correctamente sin necesidad de este cambio ni del que ha descrito w0mba más arriba.
Pero para que el gif y las otras imágenes que se generan a modo de previews estén completos necesitas el cambio descrito por w0mbat. Y para centrar las agujas de los relojes y otras imágenes en la esfera tienes que hacer el cambio que he modificado.

Y que tengo que hacer para lo del gif este ultimo que has puesto aquí ya lo tengo hecho pero el gif we sigue saliendo medio reloj

A mí me sale completo.

Tienes este código en el fichero previewGenerator.py de la carpeta ...\watchFaceParser? Originalmente, en lugar de los valores 454 había 464.

Código: Selecionar todos

    def createFrame(watchFace, resources, state):
        from PIL import Image, ImageDraw

        graphics = Image.new('RGBA', (454, 454))
        watchFace.draw3(graphics, resources, state)
        return graphics

Esa es la modificación que permite ver los gif's completos y es la descrita por w0mbat. Insisto: la que yo puse era para centrar los elementos gráficos en la esfera.

[manelto]

@manelto why not use the avialable github-fork of "amazfit_verge_lite_tools" from "ghbhaha" for the gtr, for your work. => ghbhaha/amazfit_gtr_tools

kr, pallbearer

ps: sorry i'm prohibited from posting links

I haven't a github user.

[pallbearer]

.......

I haven't a github user.

[mention]manelto[/mention]
no i meant that there is already a tools version for the gtr watch from "ghbhaha" that is avialable on github as a fork from the tools "afwafwafw" posted.

[The Matrix]

On my Verge Lite StepsProgress doesn't work at all. The animated gif is displaying correctly the circle but in the watch isn't displayed.

[manelto]

.......

I haven't a github user.

@manelto
no i meant that there is already a tools version for the gtr watch from "ghbhaha" that is avialable on github as a fork from the tools "afwafwafw" posted.

I find nothing better than the afwafwafw program with the changes described here. It works and it is easy to use.

[The Matrix]

In my watchface, I'm trying to display date in format MMDD instead of DDMM.
To do that, I'm using this code:

Código: Selecionar todos

  "Date": {
    "MonthAndDay": {
      "Separate": {
        "Day": {
          "TopLeftX": 233,
          "TopLeftY": 79,
          "BottomRightX": 254,
          "BottomRightY": 94,
          "Alignment": "TopLeft",
          "Spacing": 1,
          "ImageIndex": 13,
          "ImagesCount": 10
        },
        "Month": {
          "TopLeftX": 264,
          "TopLeftY": 79,
          "BottomRightX": 285,
          "BottomRightY": 94,
          "Alignment": "TopLeft",
          "Spacing": 1,
          "ImageIndex": 13,
          "ImagesCount": 10
        }
      },
      "TwoDigitsMonth": true,
      "TwoDigitsDay": true
    },

instead of this code

Código: Selecionar todos

  "Date": {
    "MonthAndDay": {
      "OneLine": {
        "Number": {
          "TopLeftX": 233,
          "TopLeftY": 79,
          "BottomRightX": 285,
          "BottomRightY": 94,
          "Alignment": "BottomLeft",
          "Spacing": 1,
          "ImageIndex": 13,
          "ImagesCount": 10
        },
		"DelimiterImageIndex": 32
      },
      "TwoDigitsMonth": true,
      "TwoDigitsDay": true
    },

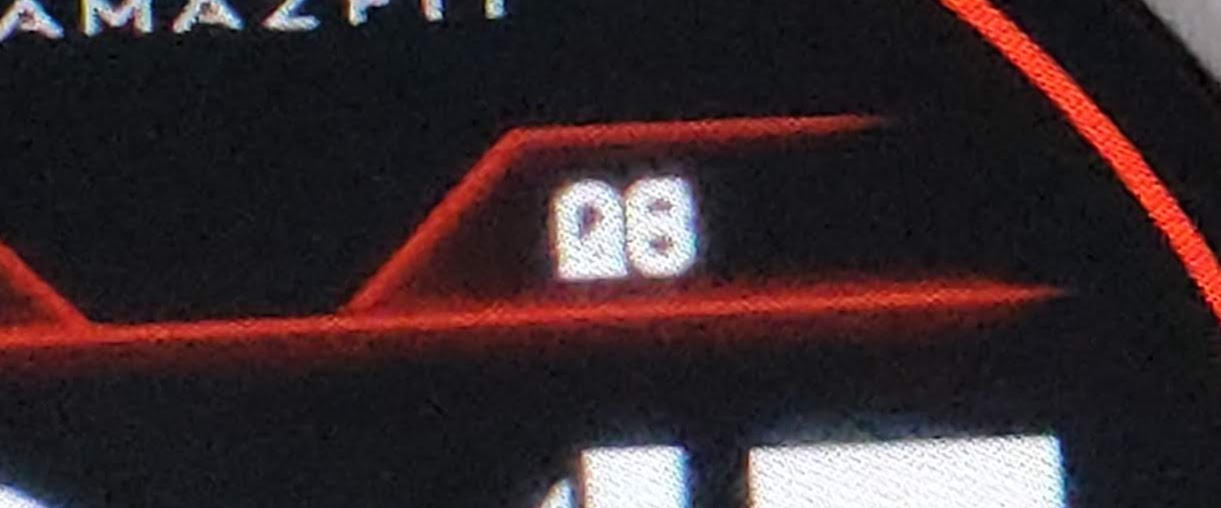

But when I use the code that displays the month and day separated, the month and day are displayed at the same position and the digits are overlapped (see image).

Isn't possible to use the "Separate" modifier?
(Is there a way to obtain a list of the available modifiers?)

[Red Art Studio]

This tool is only for unpack/pack?

So which tool to edit?

[manelto]

This tool is only for unpack/pack?

So which tool to edit?

A text editor for json (I use Notepad++) and a program for create/modify png (GIMP, photoshop, paintnet,...).

[hall]

some watch face not show weekday. check .json and png also correct. Anyone know where the problem?
