AmazFit WatchFace editor for Windows by SashaCX75

[SashaCX75]

Graphics editor for working with dials Amazfit
The editor supports watch faces from GTR 47, GTR 42, GTS, T-Rex, Verge Lite.

Screenshot

Note: the path to the program should not contain spaces, it is advisable to unpack it to the root of the disk.
Not all dials can be unpacked.
You can reduce the size of the bin file only by reducing the size of the images (height * width) or by reducing the number of images.

The drawing order of elements cannot be changed. The only exception is if you move the second hand from the center, it will be drawn under the hour and minute hands.

If the .bin file is not created, then you need to look for errors in the .log file. Most often this happens when images have the wrong format.

If the bin file is not created, and the log file contains the entry “bad transparency mask”, this means that the format of one or more images is incorrect (most often it occurs if you save the image in Photoshop without transparent pixels). You can fix it as follows:
- in Photoshop - add at least one transparent pixel
- in GIMP exported to PNG 16 bit RGBA
- in XnView - Image -> 32 bits

Version 10.0

List of changes

Added the ability to display the distance traveled in kilometers and miles.
Updated translation.

v 9.0

Fixed display of date if pictures have different sizes (often pictures for "1" are narrower than others)
Added new warnings about possible errors.
Fixed the order of displaying items.
Added a button to refresh the preview image.
Fixed bugs when converting watch faces.
Updated Chinese and Italian translations.

v 8.5

Fixed work with Verge Lite

v 8.4

Fixed Italian translation.
Added Chinese manual.

v 8.3

Bugs fixed.
Added a manual in English.

v 8.2

Added the display of the target steps (StepsGoal)
Added preliminary calculation of the size of the .bin file.

v 8.1

Fixed work on monitors with high resolution.
Updated translation (French, Italian, Chinese, Spanish).

v 8.0

Added the ability to convert dials between different watch models (GTR / T-Rex / Verge Lite).

v 7.1

Italian language added.
Minor fixes.

v 7.0

Added animation support
Verge Lite Support Added
Added the ability to quickly save the project (Ctrl + S)
Added support for languages (French, Chinese).

v 6.1

Added support for T-Rex.
Added the ability to auto-correct image files (error "bad transparency mask").
Added a reminder to save the project when it is closed.

v 6.0

Added support for shortcuts.
Added background image support for circular indicator.
Added display of a set of icons (segments) for the progress of steps.
Added display of a set of icons (segments) for the battery.
Added display of a set of icons (segments) for the pulse.
Added display of an indicator (arrow) for a pulse.
Added display of indicator (arrows) for calories.
Added display of a circular indicator for the pulse.
Added display of a circular indicator for calories.
Added the ability to crop the image to fit the screen.
Added support for languages ​​(Portuguese, Czech, Slovak, Hungarian).

v 5.2

Added support for a set of icons (icons and a set of coordinates for them) for the progress of steps and battery.
Added the ability to crop the preview according to the shape of the screen.
Bugs fixed in the English version.

v 5.1

Fixed incorrect display of the distance traveled.
Added the ability to adjust the speed of gif animation.
Added the ability to work with compressed bin files.
Updated bin file packer.
Added display of the year.
Added display of a charge indicator (arrow).
Added display of indicator (arrow) of steps.
Added display of the indicator (arrow) of the date.
Added display of indicator (arrow) of the day of the week.
Added display of indicator (arrow) of the month.
Added the ability to paste copied coordinates into offset fields from the center (for arrows).
English support added.

Old versions

v 5.2
v 6.1
v 7.1
v 8.5

If you want to supplement the missing translation, write to the PM.

Beta version of the editor with support for Amazfit X

AmazFit WatchFace editor 2 with support for GTR 2, GTS 2, T-Rex Pro

My editor doesn't work with GTR2 (GTS2) watch faces and I have no plans to add support for these models anytime soon. I don't know any other programs that can work with these dials. I have no information if anyone is working in this direction.

Because I bought a GTR 2e, the program will no longer be updated.

Donate to the author
PayPal: [email protected].

[watch996]

this tool is already in english and it is good but it is a nightmare to work with since the is no tutorial like the bip has.
to bad ...

[Lordalpine]

this tool is already in english and it is good but it is a nightmare to work with since the is no tutorial like the bip has.
to bad ...

Hi Just tell us what you can't do, what you don't understand... Maybe we can help you.

When I don't understand something... I simply ask people to share their "knowledge" to improve myself.

[taw_bip]

this tool is already in english and it is good but it is a nightmare to work with since the is no tutorial like the bip has.
to bad ...

I think the basics for all the tools are the same. It uses essentially the same JSON code.
I didn't know how to make any watchfaces either. I downloaded a few and made changes to them and experimented. No one is going to do the work for you.

[SashaCX75]

this tool is already in english and it is good but it is a nightmare to work with since the is no tutorial like the bip has.
to bad ...

I can not do the instruction for several reasons:
1. As an author, it seems to me that everything is clear, and no problems can arise when using the program.
2. I do not know English well enough to make clear instructions (there are instructions in Russian in the program).

If someone makes an instruction, I can add a link to it in the program.

[Pacojones]

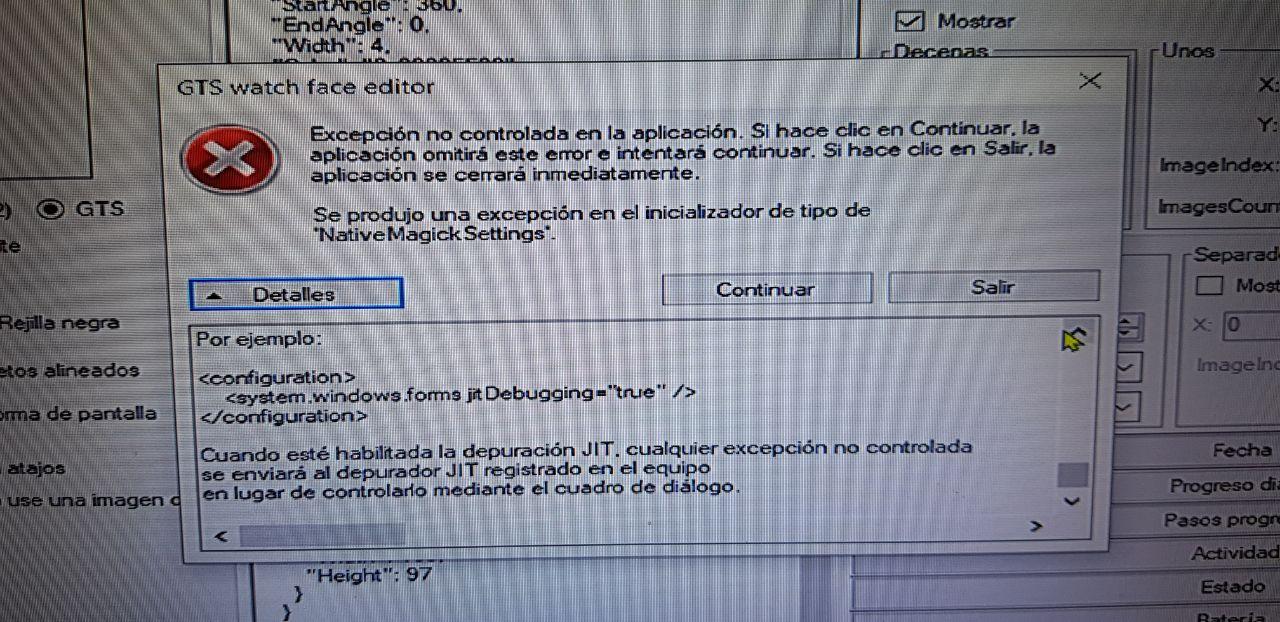

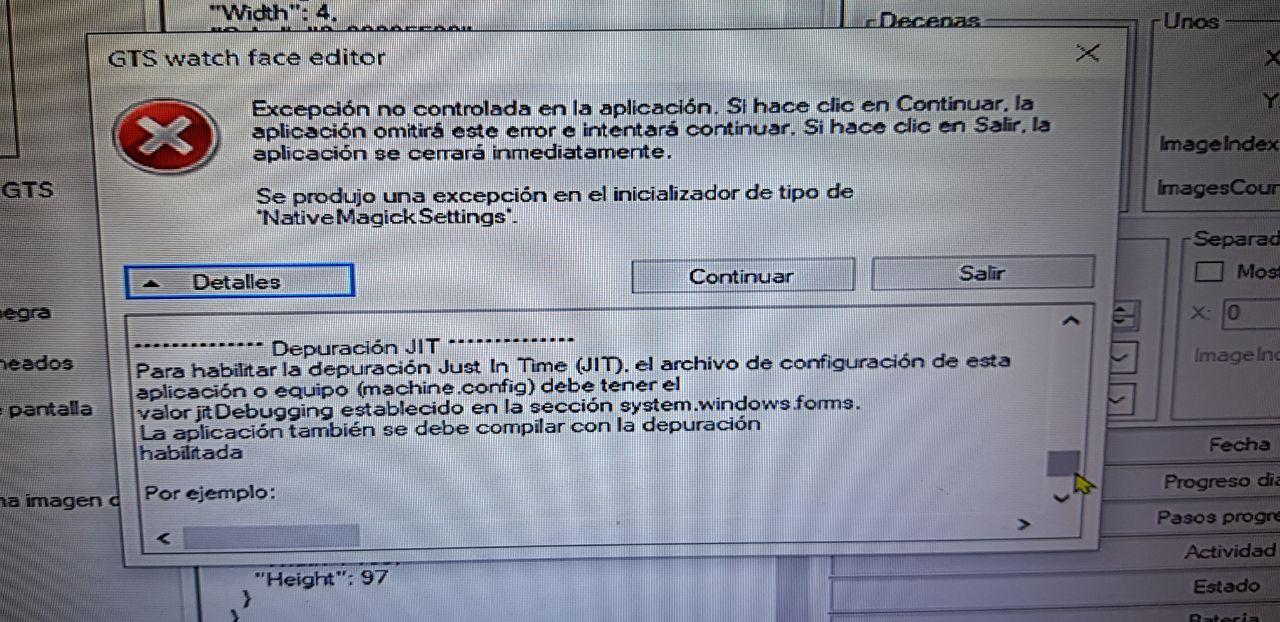

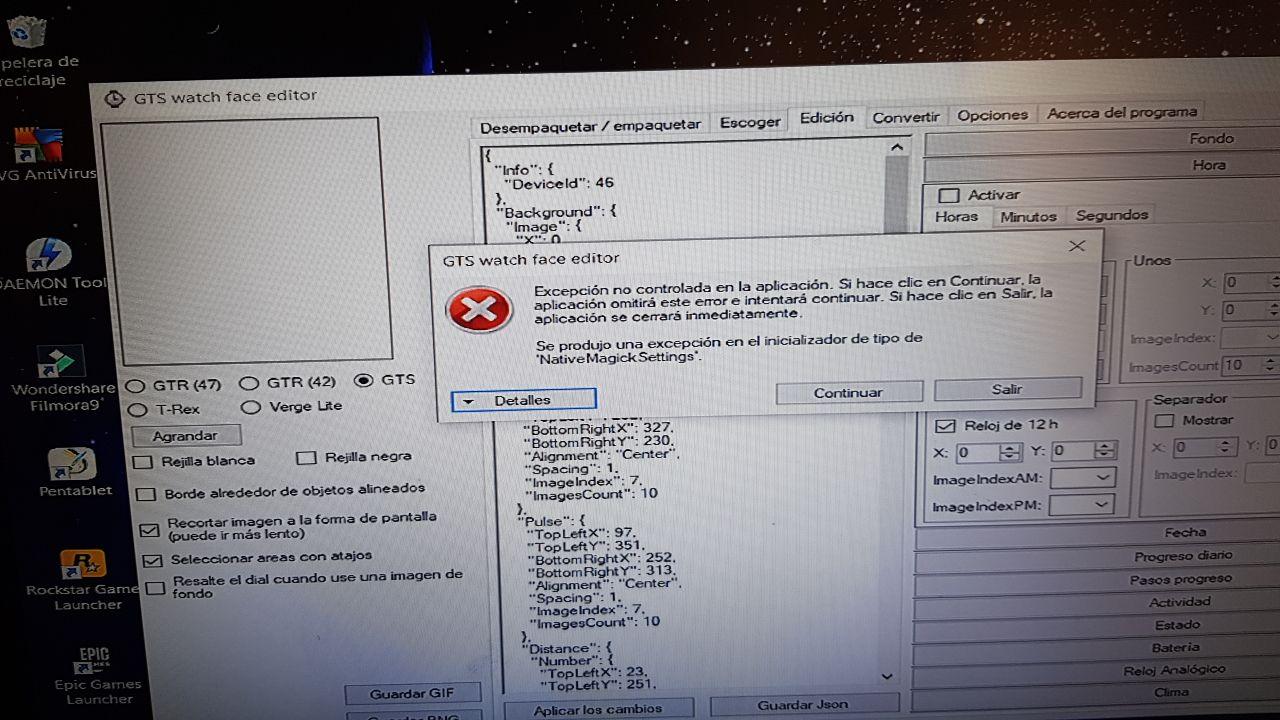

Hello, a question, you know why the image does not appear here, I have gone to disassemble a watchface and the image does not appear, I thought it was that watchface in particular, but I have taken one of those that I made mine and neither, and if I want modify something this comes out, I have until day 28 it worked well for me that was when I made the last watchface, I have new windows 10 home.

Thank you

[SashaCX75]

[mention]Pacojones[/mention]
It was necessary to expand the data with the "Details" button. What happens if you click "Continue"? Have you tried reinstalling the program?

[Pacojones]

If I click continue, it allows me to continue, but every time I change something I get that message, I already desist it and I reinstalled it and it continues to do so

[Horatius80]

this tool is already in english and it is good but it is a nightmare to work with since the is no tutorial like the bip has.
to bad ...

Seriously, it's the same as with BIP, still the same principle, .json + .png ??? So I don't understand what a manual would be needed for ?

[Pacojones]

This is what puts the end of the report in detail

[watch996]

fisrt i like to say that i'm sorry. did not want to complaint.
thank you for this program .
on the bip it is easy for me.
on the pace it is very easy for me.
for the verge lite i tryed 100 time and only succeed 2 out of the 100 :
1. https://amazfitwatchfaces.com/verge-lite/view/1059
2. https://amazfitwatchfaces.com/verge-lite/view/1063

once i got to this one im stuck
3. https://amazfitwatchfaces.com/verge-lite/view/1062

i can unpack most bin and i can re pack and see my changes on the pc, but when upload to the watch i see nothing.
only succeeded twice (1,2)

regard to all

[watch996]

this tool is already in english and it is good but it is a nightmare to work with since the is no tutorial like the bip has.
to bad ...

Hi Just tell us what you can't do, what you don't understand... Maybe we can help you.

When I don't understand something... I simply ask people to share their "knowledge" to improve myself.

fisrt i like to say that i'm sorry. did not want to complaint.
thank you for this program .
on the bip it is easy for me.
on the pace it is very easy for me.
for the verge lite i tryed 100 time and only succeed 2 out of the 100 :
1. https://amazfitwatchfaces.com/verge-lite/view/1059
2. https://amazfitwatchfaces.com/verge-lite/view/1063

once i got to this one im stuck
3. https://amazfitwatchfaces.com/verge-lite/view/1062

i can unpack most bin and i can re pack and see my changes on the pc, but when upload to the watch i see nothing.
only succeeded twice (1,2)

regard to all

[Pacojones]

@Pacojones
It was necessary to expand the data with the "Details" button. What happens if you click "Continue"? Have you tried reinstalling the program?

I already solved it, the problem was that it had to be run as an administrator, I don't know why I was now asking for it, previously it was running normally. Thanks for the help.

[SashaCX75]

[mention]watch996[/mention]
Your dial on the third link saved for GTR was set normally for me.
When using weather, I recommend that you always add weather day / night (you can use it outside the screen if it is not needed.

[Will1221]

Hi, I'm trying to pack a watch face for verge lite format, the black terminal just flashes on the screen and I don't have any success. What am I doing wrong?

This is my Code:
{
"Info": {
"DeviceId": 32
},
"Background": {
"Image": {
"X": 0,
"Y": 0,
"ImageIndex": 11
}
},
"Time": {
"Hours": {
"Tens": {
"X": 80,
"Y": 255,
"ImageIndex": 0,
"ImagesCount": 10
},
"Ones": {
"X": 125,
"Y": 255,
"ImageIndex": 0,
"ImagesCount": 10
}
},
"Minutes": {
"Tens": {
"X": 190,
"Y": 255,
"ImageIndex": 0,
"ImagesCount": 10
},
"Ones": {
"X": 240,
"Y": 255,
"ImageIndex": 0,
"ImagesCount": 10
}
},
"Delimiter": {
"X": 165,
"Y": 255,
"ImageIndex": 10
}
},
"Activity": {
"Steps": {
"Step": {
"TopLeftX": 88,
"TopLeftY": 210,
"BottomRightX": 0,
"BottomRightY": 0,
"Alignment": "CenterLeft",
"Spacing": 0,
"ImageIndex": 110,
"ImagesCount": 10
}
}
},
"Date": {
"MonthAndDay": {
"Separate": {
"Day": {
"TopLeftX": 130,
"TopLeftY": 80,
"BottomRightX": 0,
"BottomRightY": 0,
"Alignment": "TopLeft",
"Spacing": 0,
"ImageIndex": 110,
"ImagesCount": 10
}
},
"TwoDigitsMonth": true,
"TwoDigitsDay": true
},
"WeekDay": {
"X": 230,
"Y": 80,
"ImageIndex": 120,
"ImagesCount": 7
}
},
"Battery": {
"Images": {
"X": 213,
"Y": 210,
"ImageIndex": 130,
"ImagesCount": 10
}
}
}

[SWCI]

Can you tell me exactly how all the images are ordered? Thanks.

[Will1221]

Yes, I ordered them
1. Background
2. Numbers
3. Battery

[Will1221]

I changed de png names ang didn't get any error at loading the images, now i found this ValueError: bad transparency mask

[SWCI]

Why the tool orders me the png files in this way?
what am I doing wrong ?
Thanks.

0 002
1 003
2 004
3 005
4 006
5 007
6 008
7 009
8 010
9 000
10 001
11 011

[SashaCX75]

[mention]SWCI[/mention]
I don’t understand what does not suit you. Is a bin file created? Are you not satisfied with the order of the files in the nutra bin file?

Or in the editor, the pictures in the table go out of order. If so, then this is not correct. Then came the project, I'll see what the problem is.

[SWCI]

@SWCI
I don’t understand what does not suit you. Is a bin file created? Are you not satisfied with the order of the files in the nutra bin file?

Or in the editor, the pictures in the table go out of order. If so, then this is not correct. Then came the project, I'll see what the problem is.

I sent you a private message with the .bin file.

[SashaCX75]

Version 8.2
List of changes (Google Translate)
Added the display of the target steps (StepsGoal)
Added preliminary calculation of the size of the .bin file.

[juanl]

The Stepgoal modification works perfectly.
Also thank you for the work you do so that we can continue to make spheres and respond to user requests.
A greeting

[maortrol]

Added preliminary calculation of the size of the .bin file.

Where is that option located? Can't find it... Thanks in advance!

[xMrPhede]

Hi to everyone, I'm getting the error "Bad Transparency Mask", I already tried almost anything to convert my images into a "good" PNG, I tried with FormatFactory, with Photoshop and other apps. I would like to know if someone knows the solution to this problem. Thanks

[Will1221]

Have you tried 32bit illustrator png? Try to look every image to see which one doesn't have a 32 bit formst
