Was wondering if anyone could make this watchface. It's the multicolour watchface, but I would just like the rings, the nike logo and the DAY all to be red.

https://amazfitwatchfaces.com/gts/view/6857

If not possible, no problem!

Bip 3 , gts2 mini , Bip U

You can try to do by yourself by use Editor on web.
https://tnxec2.github.io/amazfit-gts2mi ... ace-react/

source for editor ( can use offline )
https://github.com/Tnxec2/amazfit-gts2m ... s2mini.zip
if you want to see new version please use this link to check
https://github.com/Tnxec2/amazfit-gts2m ... face-react

Huaim official online editor
https://watchface.zepp.com/create

source for main.exe
https://github.com/Tnxec2/py_amazfit_to ... e/GTS2mini

main.exe for pack , unpack ".json" to ".Bin" or unpack ".Bin" to ".json + image" ( GTS2mini , Bip U , Bip 3 )
Version 04-07-2023 :

main04-07-23.rar: (8.52 MiB) Scaricato 280 volte

This main.exe compile by Tnxec2
https://raw.githubusercontent.com/Tnxec ... i/main.exe

How to use main.exe for pack watchface
viewtopic.php?p=15985#p15985

I don't have GTS2mini
That I fulfilled this request. In order to find tools for those who are interested in making their own Gts2mini watch faces. From testing all the tools that have been posted, one can definitely create a watch face. So I probably won't be accepting requests for this GTS2mini again.
therefore learned to know

-------------------------------------------------------------------------------------------------------------------------------

Spoiler

Please read carefully before download.
- I will only convert or ported from original , I will not accept any request to edit or modify or change something from this converted.
- Not test on real device only test by Editor on web
- Who download and it's not work please tell me I will delete it.
.
Watchface :

RED_GTS2mini.bin: (1.18 MiB) Scaricato 139 volte

gray_white_Gts2mini.bin: (1.18 MiB) Scaricato 142 volte

white_Gts2mini_packed.bin: (1.18 MiB) Scaricato 123 volte

I will give it a shot!!

Well I tried. It's too complicated without knowing anything

I wish there was guide to follow

Kurtyyyyyy
Watchface Download link :
viewtopic.php?p=12537#p12537

This almost perfect but I would like the time to be white!

How in the hell do you do these request so fast??

Kurtyyyyyy
Download link :
viewtopic.php?p=12537#p12537
And please read carefully before download
If you want to edit on modify this ported watchface , please try it yourself. from the tools previously posted.

_________________________________________________________________________________________________________
I don't have GTS2mini
That I fulfilled this request. In order to find tools for those who are interested in making their own Gts2mini watch faces. From testing all the tools that have been posted, one can definitely create a watch face. So I probably won't be accepting requests for this GTS2mini again.
therefore learned to know

asoo

My friend I can't thank you enough. Thank you for using your own time to do this. I will no longer bother you

Hi, I'm having difficult times creating my watchface with those tools shown above.
so exhausted...

I would be happy if anyone could look over my bin file and create a proper watchface bin.

What I've done is
1. Unpack downloaded bin from catalog using main_mini.exe.
2. Modify and also create some new images using Photopea.
3. Reduced the size of png using "https://compresspng.com/".
4. Using offline editor(not Huaim) to edit jason.
5. Pack with main_mini.exe and finally get my watchface.bin and other animated gif and else.
6. Install bin via amaztool.app (iOS).

Install successed but the images didn't show on the watchface and crushes...

rol_rainbow_packed.bin: my troubled bin; (393.94 KiB) Scaricato 119 volte

to PackUnpack bin, I've also tried to use this tool (viewtopic.php?p=10807#p10807) instead but the result was the same.

juno-san ha scritto: 15 giu 2022, 02:08

Spoiler
Hi, I'm having difficult times creating my watchface with those tools shown above.
so exhausted...

I would be happy if anyone could look over my bin file and create a proper watchface bin.

What I've done is
1. Unpack downloaded bin from catalog using main_mini.exe.
2. Modify and also create some new images using Photopea.
3. Reduced the size of png using "https://compresspng.com/".
4. Using offline editor(not Huaim) to edit jason.
5. Pack with main_mini.exe and finally get my watchface.bin and other animated gif and else.
6. Install bin via amaztool.app (iOS).

Install successed but the images didn't show on the watchface and crushes...

rol_rainbow_packed.bin

to PackUnpack bin, I've also tried to use this tool (viewtopic.php?p=10807#p10807) instead but the result was the same.

First of all let me tell you that I don't have gts2min so I can only check the scritp and resource section.

from the inspection I can't find any abnormality in script "json".
but in resource images section based on the information you provided you get compress png
So I think the problem might be from this part.

Since the device has a specific png format, it may result in the image that you compress the device to be unreadable.

I recommend using a normal PNG image that doesn't have compress.

The PNG I am using has the following format:
Immagine

Examples that have been uncompress png
I'm not sure if I can work because I don't have GTS2MINI.
But in the "pack process" it's without any error

Spoiler

rol_rainbow_packed_packed.bin: (393.94 KiB) Scaricato 119 volte

asoo

Thank you so much and I finally made it!

I changed my png format from using palette to truecolor.
also about my jason file, I found that I didin't add preview block. what a laugh...

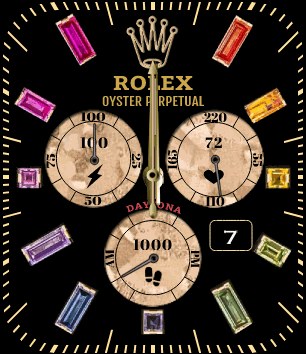

: ok_rol_rainbow_packed_animated.gif (592.81 KiB) Visto 6602 volte

ok_rol_rainbow_packed_packed.bin: (445.7 KiB) Scaricato 128 volte

juno-san ha scritto: 15 giu 2022, 02:08
Hi, I'm having difficult times creating my watchface with those tools shown above.
so exhausted...

I would be happy if anyone could look over my bin file and create a proper watchface bin.

What I've done is
1. Unpack downloaded bin from catalog using main_mini.exe.
2. Modify and also create some new images using Photopea.
3. Reduced the size of png using "https://compresspng.com/".
4. Using offline editor(not Huaim) to edit jason.
5. Pack with main_mini.exe and finally get my watchface.bin and other animated gif and else.
6. Install bin via amaztool.app (iOS).

Hi @ juno can you tell me how to pack folder back to bin file, hope you reply soon

Pack all resource in the folder to make BIN
- copy main_mini.exe to the folder where the .json that you want to pack.

command line for pack to BIN

Codice: Seleziona tutto

main_mini.exe  --gts2mini --file filename.json

thank you so much asoo , will try tomorrow and reply results soon.

asoo hey, sorry to bother you, but i cant figure out how to use the editor u send. I wont lent me upload images. also i dont understand how to convert .bin files into .json files.
Could you explain that to me?

SilexMilex ha scritto: 04 nov 2022, 15:43
@asoo hey, sorry to bother you, but i cant figure out how to use the editor u send. I wont lent me upload images. also i dont understand how to convert .bin files into .json files.
Could you explain that to me?

command line unpack .bin

Codice: Seleziona tutto

main_mini.exe  --gts2mini --file filename.bin

after unpack you will see all resource and .json

Editor that i post you can open it by use any browser ( Firefox , Chrome .... )
https://github.com/Tnxec2/amazfit-gts2m ... s2mini.zip
Unzip editor to Folder you want .
Open editor by click index.html

About how to use please try by yourself because I do not how to tell you and I think it not hard to understand

asoo ha scritto: 14 apr 2022, 13:29

Spoiler
You can try to do by yourself by use Editor on web.
https://tnxec2.github.io/amazfit-gts2mi ... ce-static/

source for editor ( can use offline )
https://github.com/Tnxec2/amazfit-gts2m ... ace-static

Huaim official online editor
https://watchface.huami.com/create

source for main.exe
https://github.com/Tnxec2/py_amazfit_to ... e/GTS2mini

main_mini.exe for pack ".json" to ".Bin" or unpack ".Bin" to ".json + image" ( GTS2mini , Bip U )
GTS2mini.zip

I don't have GTS2mini
That I fulfilled this request. In order to find tools for those who are interested in making their own Gts2mini watch faces. From testing all the tools that have been posted, one can definitely create a watch face. So I probably won't be accepting requests for this GTS2mini again.
therefore learned to know

-------------------------------------------------------------------------------------------------------------------------------
Spoiler

Please read carefully before download.
- I will only convert or ported from original , I will not accept any request to edit or modify or change something from this converted.
- Not test on real device only test by Editor on web
- Who download and it's not work please tell me I will delete it.
.
Watchface :
RED_GTS2mini.bin
gray_white_Gts2mini.bin
white_Gts2mini_packed.bin

Thanks in advance.
I create my own watchface whit huami editor but alwaysondisplay not exported...
So I unpack bin file and modify with Tnxec2 editor. In the preview I see it ok.
packing with mini_main I get an error so I pack it with python main.py --gts2mini --file WATCH_FACE_FILE.json command.
But a black screen appears when follow screen AOD.
Wath is the correct JSON syntax for AOD? y would like it whit digital time.

hihaizhi ha scritto: 26 gen 2023, 07:53
Thanks in advance.
I create my own watchface whit huami editor but alwaysondisplay not exported...
So I unpack bin file and modify with Tnxec2 editor. In the preview I see it ok.
packing with mini_main I get an error so I pack it with python main.py --gts2mini --file WATCH_FACE_FILE.json command.
But a black screen appears when follow screen AOD.
Wath is the correct JSON syntax for AOD? y would like it whit digital time.

Sorry, I can't verify this issue because
I don't have this device, so I'm not sure what is the issue, because usually if you use the official editor ( huami editor ) to create a watch face, The result should be the same as the preview shown in the editor.

source for main.exe
https://github.com/Tnxec2/py_amazfit_to ... e/GTS2mini

main.exe for pack , unpack ".json" to ".Bin" or unpack ".Bin" to ".json + image" ( GTS2mini , Bip U , Bip 3 )
main.zip

你好，请问main.exe具体怎么使用呢？

goto CMD ( DOS )

type main -h and Enter you will see command line to use it .

Codice: Seleziona tutto

usage: main [-h] [--vergelite] [--gtr {42,47}] [--gtr2 {42,47}] [--gts] [--gts2] [--trexpro] [--oldformat]
            [--gts2mini] [--bipu] [--bip3] [--trex] [--x] [--file FILE [FILE ...]] [--to_raw] [--from_raw]
            [--border_alignment]

optional arguments:
  -h, --help            show this help message and exit
  --vergelite           force VergeLite watchface
  --gtr {42,47}         force GTR watchface
  --gtr2 {42,47}        force GTR2 watchface
  --gts                 force GTS watchface
  --gts2                force GTS2 watchface
  --trexpro             force TRexPro watchface
  --oldformat           force old json format for GTS2 or GTR2
  --gts2mini            force GTS2 Mini watchface
  --bipu                force Bip U watchface
  --bip3                force Bip 3 watchface
  --trex                force T-REX watchface
  --x                   force AmazfitX watchface
  --file FILE [FILE ...]
                        watchface.bin - unpacks watchface images and config watchface.json - packs config and
                        referenced images to bin file
  --to_raw              save raw header and resources
  --from_raw            generate bin from raw folder
  --border_alignment    draw border around aligned objects in preview

Examples of using programs on the command line
viewtopic.php?p=14178#p14178
viewtopic.php?p=13255#p13255

You can try to do by yourself by use Editor on web.
https://tnxec2.github.io/amazfit-gts2mi ... ace-react/

请问我用这个在线编辑器做的指针表盘有卡顿、流畅性不好的现象，这是什么原因呢？

I can't check anything because I don't have this device.

I suggest you open a new topic about the watchface you are having trouble with.
and upload the watchface with that problem to the topic in case someone with the device can test and fix the problem for you.

-----------------------------------------------------
viewtopic.php?p=12537#p12537
New main.exe released (04-07-2023)
main.exe

Kurtyyyyyy ha scritto: 14 apr 2022, 11:06
Was wondering if anyone could make this watchface. It's the multicolour watchface, but I would just like the rings, the nike logo and the DAY all to be red.

https://amazfitwatchfaces.com/gts/view/6857

If not possible, no problem!

请问我用这网上编辑器做表盘快捷方式不成功，是哪里没有设定好吗？
